CMF1.1011.12

Active

SCHURTER Inc.

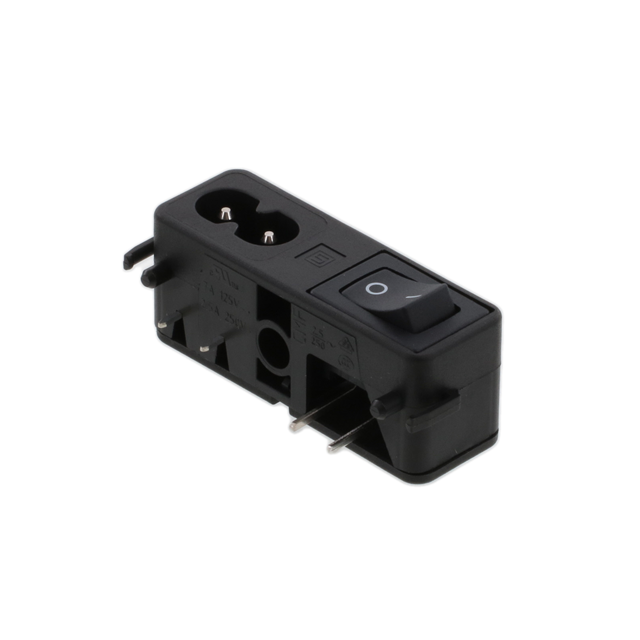

PWR ENT MOD RCPT IEC320-C8 PANEL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C8 PANEL

Technical Specifications

Parameters and characteristics for this part

Specification	CMF1.1011.12

Accomodates a Fuse	False
Approval Agency	cULus, CCC, VDE
Connector Style	Non-Polarized, IEC 320-C8
Connector Type	Receptacle, Male Pins - Module
Current Rating - Appliance Inlet	2.5 A
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount, Snap-In
Number of Positions	2
Panel Thickness	2 mm
Panel Thickness	0.079 in
Switch Features	Switch On-Off
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

Part	Approval Agency	Accomodates a Fuse	Mounting Type	Panel Thickness	Panel Thickness	Connector Type	Ingress Protection	Material Flammability Rating	Termination	Switch Features	Number of Positions	Filter Type	Voltage Rating - Appliance Inlet	Connector Style	Current Rating - Appliance Inlet
SCHURTER Inc. CMF1.1011.12	CCC cULus VDE		Panel Mount Snap-In Through Hole Right Angle	2 mm	0.079 in	Receptacle Male Pins - Module	IP40	UL94 V-0	Solder	Switch On-Off	2	Unfiltered - Commercial	250 VAC	IEC 320-C8 Non-Polarized	2.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Pins - Module IEC 320-C8, Non-Polarized Panel Mount, Snap-In; Through Hole, Right Angle
