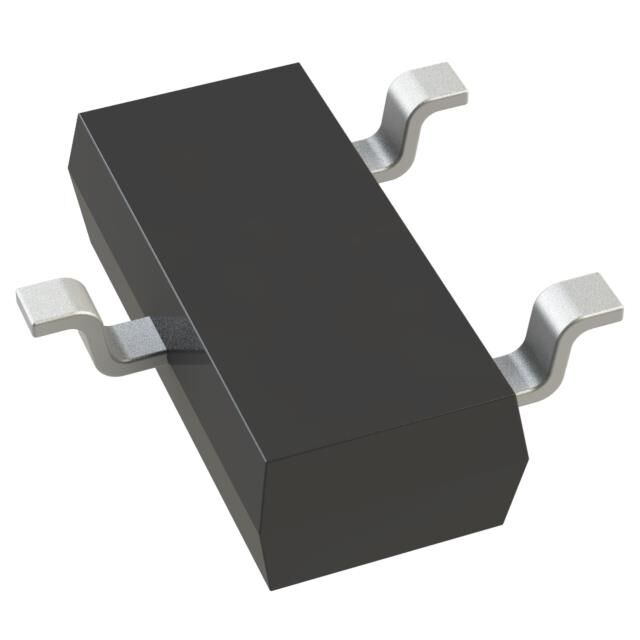

3STR1630

Obsolete

STMicroelectronics

TRANS NPN 30V 6A SOT-23-3

Search across all available documentation for this part.

Obsolete

STMicroelectronics

TRANS NPN 30V 6A SOT-23-3

Technical Specifications

Parameters and characteristics for this part

Specification	3STR1630

Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	180 hFE
Frequency - Transition	100 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Power - Max [Max]	500 mW
Supplier Device Package	SOT-23-3
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	300 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Current - Collector Cutoff (Max) [Max]	Operating Temperature	Mounting Type	Supplier Device Package	Transistor Type	Power - Max [Max]	Package / Case	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Frequency - Transition
STMicroelectronics 3STR1630	100 nA	150 °C	Surface Mount	SOT-23-3	NPN	500 mW	SC-59 SOT-23-3 TO-236-3	300 mV	30 V	180 hFE	100 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor NPN 30 V 6 A 100MHz 500 mW Surface Mount SOT-23-3
