PPPC132LFBN-RC

Active

Sullins Connector Solutions

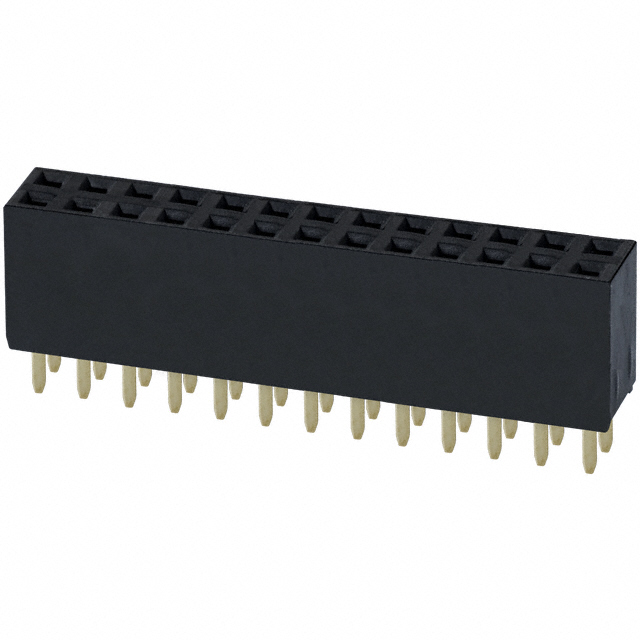

BOARD CONNECTOR, 26 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Sullins Connector Solutions

BOARD CONNECTOR, 26 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	PPPC132LFBN-RC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	250 VDC

Part	Number of Positions Loaded	Insulation Material	Connector Type	Fastening Type	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Contact Length - Post	Contact Length - Post [x]	Contact Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Finish - Post	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions	Current Rating (Amps)	Mounting Type	Voltage Rating	Number of Rows	Termination	Contact Finish Thickness - Mating
Sullins Connector Solutions PPPC132LFBN-RC	All	Polyester	Header	Push-Pull	Flash	0.335 "	8.51 mm	2.54 mm	0.1 in	Square	3.2 mm	0.126 in	Female Socket	UL94 V-0	0.1 in	2.54 mm	Gold	Gold	Black	-40 °C	105 ░C	Phosphor Bronze	26	3 A	Through Hole	250 VDC	2	Solder	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Header Connector 0.100" (2.54mm) Through Hole Gold
