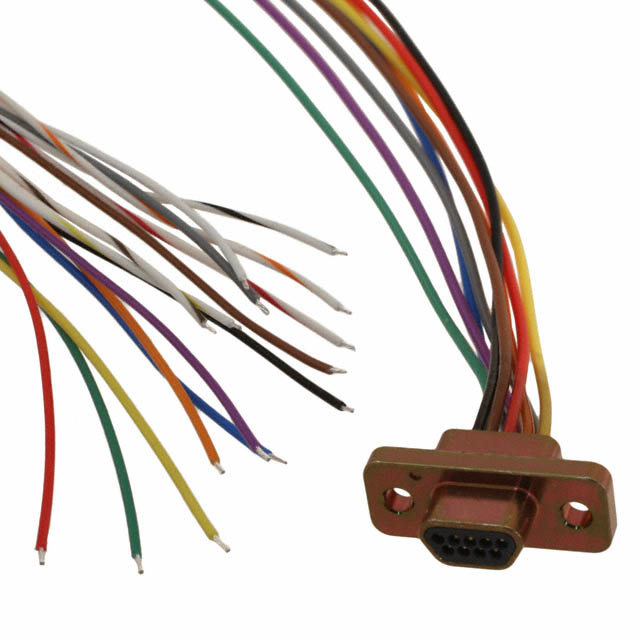

MDM-9SH006F-A174-F222
ActiveITT Cannon, LLC
CABLE ASSY D - MIC D 9P 914.4MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MDM-9SH006F-A174-F222
ActiveITT Cannon, LLC
CABLE ASSY D - MIC D 9P 914.4MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MDM-9SH006F-A174-F222 |
|---|---|
| 1st Connector | Receptacle, Female Sockets |
| 2nd Connector | Individual Wire Leads |
| Color | Multiple, Individual |
| Contact Finish | Gold |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 9 |
| Shielding | Unshielded |
| Type | D-Type, Micro-D |
MDM-9 Series
...
| Part | 1st Connector | Number of Positions | Length [x] | Length [x] | Color | Contact Finish | Shielding | Type | 2nd Connector | Length | Length | Length | Length | Features | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Termination | Shell Material, Finish | Contact Material | Connector Type | Flange Feature | Current Rating (Amps) | Connector Style | Number of Rows | Dielectric Material | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Plug Male Pins | 9 | 3 ft | 914.4 mm | Individual Multiple | Gold | Unshielded | D-Type Micro-D | Individual Wire Leads | |||||||||||||||||||
ITT Cannon, LLC | Plug Male Pins | 9 | Gold | Unshielded | D-Type Micro-D | Individual Wire Leads | ||||||||||||||||||||||
ITT Cannon, LLC | Plug Male Pins | 9 | Individual Multiple | Gold | Unshielded | D-Type Micro-D | Individual Wire Leads | 152.4 mm | 6 " | 0.5 ' | ||||||||||||||||||
ITT Cannon, LLC | Female Sockets Receptacle | 9 | Gold | Unshielded | D-Type Micro-D | Individual Wire Leads | ||||||||||||||||||||||
ITT Cannon, LLC | Plug Male Pins | 9 | Individual Multiple | Gold | D-Type Micro-D | Individual Wire Leads | 1.83 m | 6 ft | ||||||||||||||||||||
ITT Cannon, LLC | 9 | Gold | Shielded | -55 °C | 125 °C | 0.043 | 0.05 | Wire Leads | Aluminum Yellow Chromate Plated Cadmium | Copper Alloy | Receptacle Female Sockets | Cable Side Male Jackscrew (2-56) | 3 A | D-Type Micro-D | 2 | Liquid Crystal Polymer (LCP) | Signal | |||||||||||
ITT Cannon, LLC | Plug Male Pins | 9 | 1.5 ft | 457.2 mm | Individual Yellow | Gold | Unshielded | D-Type Micro-D | Individual Wire Leads | |||||||||||||||||||
ITT Cannon, LLC | Female Sockets Receptacle | 9 | 1.5 ft | 457.2 mm | Individual Yellow | Gold | Unshielded | D-Type Micro-D | Individual Wire Leads | |||||||||||||||||||
ITT Cannon, LLC | Female Sockets Receptacle | 9 | 3 ft | 914.4 mm | Individual Multiple | Gold | Unshielded | D-Type Micro-D | Individual Wire Leads | |||||||||||||||||||
ITT Cannon, LLC | Plug Male Pins | 9 | 1.5 ft | 457.2 mm | Individual Multiple | Gold | Unshielded | D-Type Micro-D | Individual Wire Leads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 192.51 | |
Description
General part information
MDM-9 Series
D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 3.00' (914.40mm) Receptacle, Female Sockets to Individual Wire Leads Unshielded
