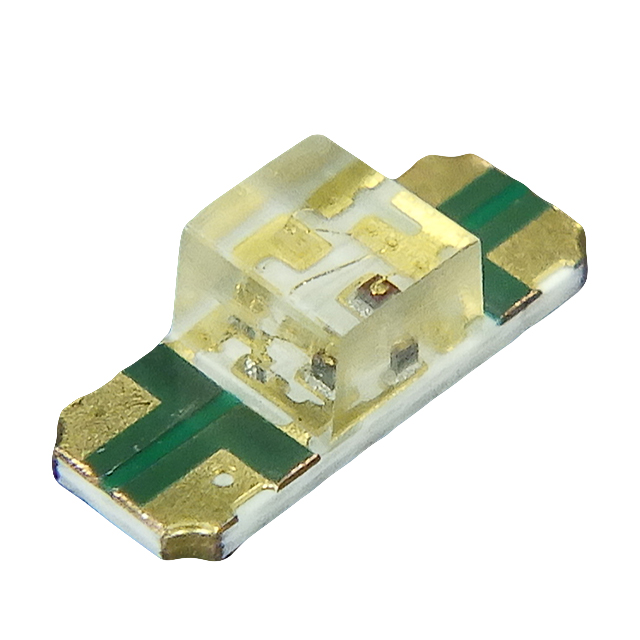

QBLP655R-RGB
ActiveQT Brightek (QTB)
LED RGB CLEAR 1205 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBLP655R-RGB
ActiveQT Brightek (QTB)
LED RGB CLEAR 1205 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBLP655R-RGB |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] | 1.2 mm |
| Lens Color | Colorless |
| Lens Size | 1.2 mm |
| Lens Style | Square with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 95 mcd |
| Millicandela Rating [custom] | 90 mcd |
| Millicandela Rating [custom] | 450 mcd |
| Mounting Type | Surface Mount, Bottom Entry |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.2 mm |
| Supplier Device Package | 1205 |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 3.1 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.1 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2 V |
| Wavelength - Dominant | 623 nm, 520 nm, 470 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.75 | |
| 10 | $ 0.52 | |||
| 100 | $ 0.38 | |||
| 500 | $ 0.31 | |||
| Digi-Reel® | 1 | $ 0.75 | ||
| 10 | $ 0.52 | |||
| 100 | $ 0.38 | |||
| 500 | $ 0.31 | |||
| Tape & Reel (TR) | 1000 | $ 0.29 | ||
| 2000 | $ 0.28 | |||
| 3000 | $ 0.27 | |||
| 5000 | $ 0.26 | |||
| 7000 | $ 0.25 | |||
| 10000 | $ 0.25 | |||
| 25000 | $ 0.23 | |||
Description
General part information
QBLP655 Series
Red, Green, Blue (RGB) 623nm Red, 520nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.1V Green, 3.1V Blue 4-SMD, No Lead
