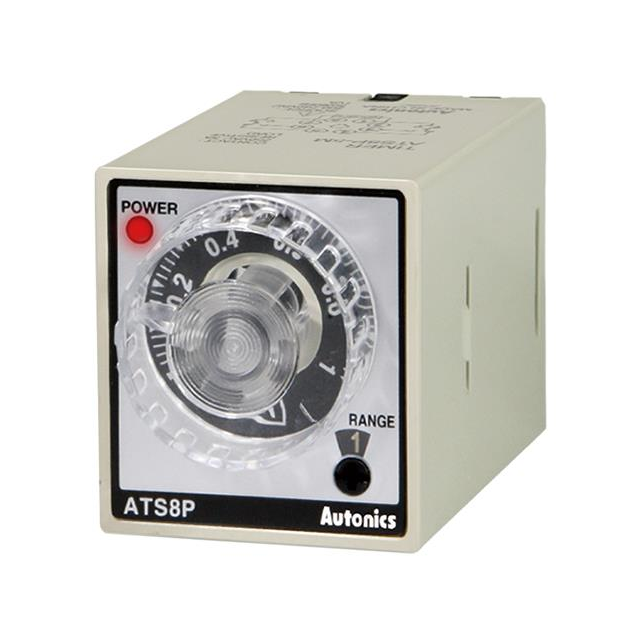

ATS8P-6M
ActiveAUTONICS
RELAY TIME DELAY 10MIN 3A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ATS8P-6M
ActiveAUTONICS
RELAY TIME DELAY 10MIN 3A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ATS8P-6M |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 3 A, 250 VAC, 30 VDC |
| Delay Time [Max] | 10 Min |
| Delay Time [Min] | 0.1 Min |
| Function | Off-Delay |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In, 8 Pin (Octal) |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply [Max] | 120 VAC |
| Voltage - Supply [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 50.00 | |
Description
General part information
ATS8P Series
Off-Delay Time Delay Relay DPDT (2 Form C) 0.1 Min ~ 10 Min Delay 3A @ 250VAC/30VDC Socketable
