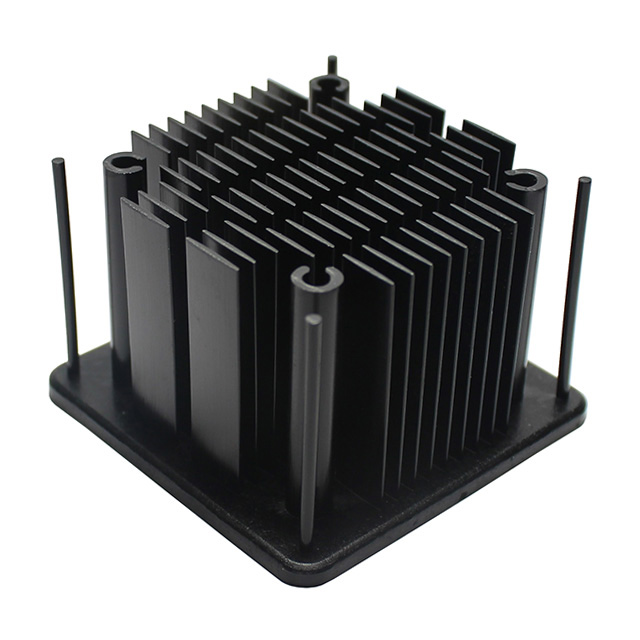

AER48-48-12CB/A01

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED BLK ANO TOP MNT

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED BLK ANO TOP MNT

Technical Specifications

Parameters and characteristics for this part

Specification	AER48-48-12CB/A01

Attachment Method	Thermal Tape, Adhesive (Included)
Length	1.854 in
Length	47.1 mm
Material	Aluminum Alloy
Material Finish	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Fins
Shelf Life	24 Months
Thermal Resistance @ Forced Air Flow	2.68 °C/W, 200 LFM
Thermal Resistance @ Natural	8.67 °C/W
Type	Top Mount
Width [x]	1.854 "
Width [x]	47.1 mm

Part	Thermal Resistance @ Natural	Material	Material Finish	Shape	Package Cooled	Shelf Life	Type	Fin Height	Fin Height	Attachment Method	Width [x]	Width [x]	Length	Length	Thermal Resistance @ Forced Air Flow	Fin Height [z]	Fin Height [z]
Tusonix a Subsidiary of CTS Electronic Components AER48-48-23CB/A01	7.26 °C/W	Aluminum Alloy	Black Anodized	Fins Square	ASIC BGA CPU LGA	24 Months	Top Mount	22.61 mm	0.89 in	Thermal Tape Adhesive (Included)	1.854 "	47.1 mm	1.854 in	47.1 mm	1.76 °C/W
Tusonix a Subsidiary of CTS Electronic Components AER48-48-21CB/A01	7.51 °C/W	Aluminum Alloy	Black Anodized	Fins Square	ASIC BGA CPU LGA	24 Months	Top Mount			Thermal Tape Adhesive (Included)	1.854 "	47.1 mm	1.854 in	47.1 mm	1.97 °C/W 200 LFM	20.6 mm	0.811 in
Tusonix a Subsidiary of CTS Electronic Components AER48-48-12CB/A01	8.67 °C/W	Aluminum Alloy	Black Anodized	Fins Square	ASIC BGA CPU LGA	24 Months	Top Mount			Thermal Tape Adhesive (Included)	1.854 "	47.1 mm	1.854 in	47.1 mm	2.68 °C/W 200 LFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Alloy Top Mount
