A4934GLPTR-T

Obsolete

Allegro MicroSystems

IC MOTOR DRIVER 8V-16V 16TSSOP

Search across all available documentation for this part.

Obsolete

Allegro MicroSystems

IC MOTOR DRIVER 8V-16V 16TSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	A4934GLPTR-T

Applications	Fan Motor Driver
Current - Output	500 mA
Function	Driver - Fully Integrated, Control and Power Stage
Interface	PWM
Motor Type - AC, DC	Brushless DC (BLDC)
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (3)

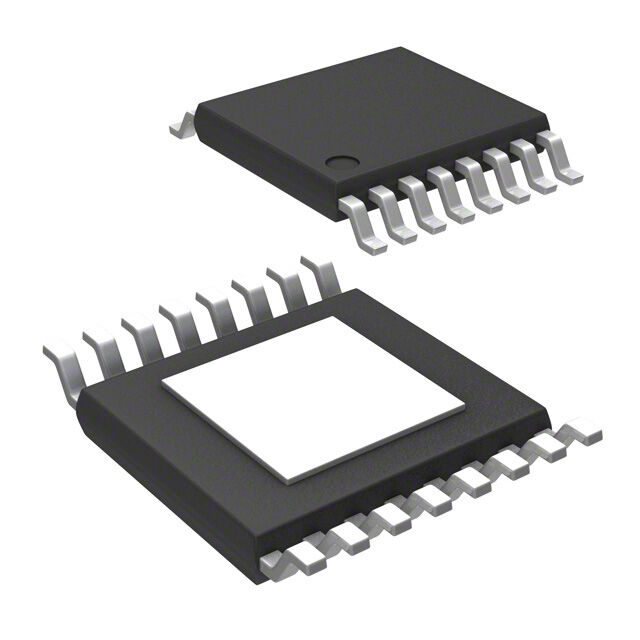

Package / Case	Exposed Pad, 16-TSSOP
Package / Case [custom]	0.173 "
Package / Case [custom]	4.4 mm
Supplier Device Package	16-eTSSOP-EP
Technology	Power MOSFET
Voltage - Load [Max]	16 V
Voltage - Load [Min]	8 V
Voltage - Supply [Max]	16 V
Voltage - Supply [Min]	8 V

Part	Function	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Min]	Voltage - Load [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Technology	Package / Case [custom]	Package / Case	Package / Case [custom]	Applications	Output Configuration	Interface	Motor Type - AC, DC	Current - Output
Allegro MicroSystems A4934GLPTR-T	Driver - Fully Integrated Control and Power Stage	Surface Mount	150 °C	-40 °C	8 V	16 V	8 V	16 V	16-eTSSOP-EP	Power MOSFET	0.173 "	16-TSSOP Exposed Pad	4.4 mm	Fan Motor Driver	Half Bridge (3)	PWM	Brushless DC (BLDC)	500 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Motor Driver Power MOSFET PWM 16-eTSSOP-EP
