GP50A13A-R1B
ActiveMEAN WELL USA Inc.

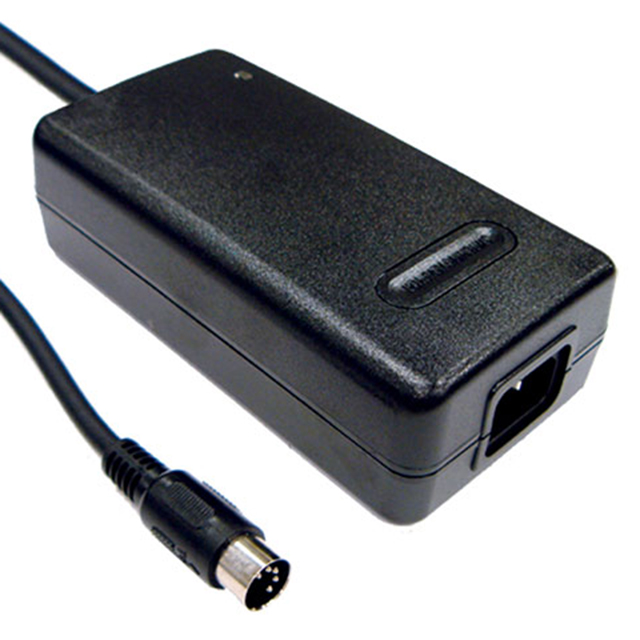

AC/DC DSKTP ADPT 5V/12V/-5V 47W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GP50A13A-R1B
ActiveMEAN WELL USA Inc.
AC/DC DSKTP ADPT 5V/12V/-5V 47W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GP50A13A-R1B |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | GS, cULus, CBE, CE |
| Cord Length | 1 m |
| Cord Length | 39.4 " |
| Current - Output (Max) | 2 A, 4 A, 500 mA |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 300 mW |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | DIN |
| Output Connector | 5 Pin |
| Power (Watts) | 47 W |
| Region Utilized | International |
| Size / Dimension [x] | 5.75 in |
| Size / Dimension [x] | 146 mm |
| Size / Dimension [y] | 2.97 in |
| Size / Dimension [y] | 75.5 mm |
| Size / Dimension [z] | 43 mm |
| Size / Dimension [z] | 1.69 in |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V, -5 V, 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 50.50 | |
| 5 | $ 48.10 | |||
| 10 | $ 46.00 | |||
| 25 | $ 44.70 | |||
Description
General part information
GP50A13A Series
5V, 12V, -5V 47 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
