09620005023

Active

HARTING Technology Group

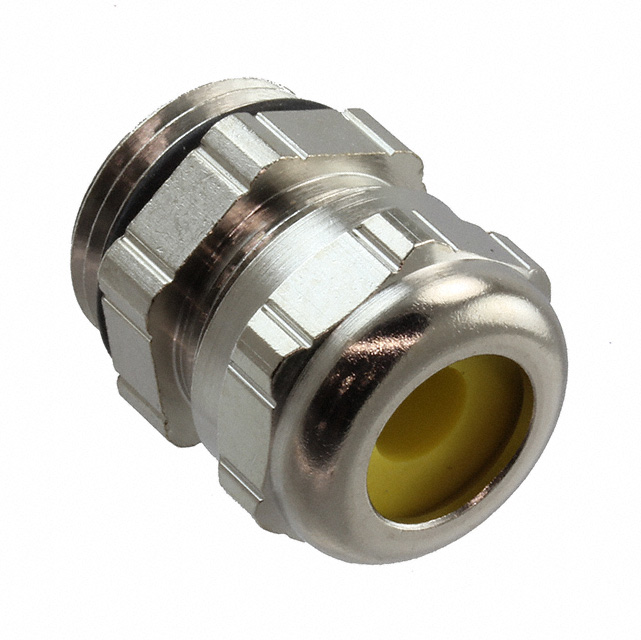

ACCES. SPECIAL CABLE CLAMP EMC PG 11, IR ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

ACCES. SPECIAL CABLE CLAMP EMC PG 11, IR ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09620005023

Color	Silver
Includes	Compression Nut
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Metal
Outside Cable Diameter (Max) [Max] [diameter]	0.256 "
Outside Cable Diameter (Max) [Max] [diameter]	6.5 mm
Outside Cable Diameter (Min) [Min]	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm
Thread Size	PG11
Type	Cable Gland

Part	Ingress Protection	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Color	Type	Thread Size	Includes	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
HARTING Technology Group 09620005012	IP68 - Dust Tight Waterproof	32 mm	1.26 in	Silver	Cable Gland	PG36	Compression Nut	Metal	1.063 in	27 mm
HARTING Technology Group 09620005010	IP68 - Dust Tight Waterproof			Silver	Cable Gland	PG29	Compression Nut	Metal	0.787 in	20 mm	0.984 in	25 mm
HARTING Technology Group 09620005011	IP68 - Dust Tight Waterproof			Silver	Cable Gland	PG36	Compression Nut	Metal	0.945 in	24 mm	1.102 in		28 mm
HARTING Technology Group 09620005008	IP68 - Dust Tight Waterproof			Silver	Cable Gland	PG21	Compression Nut	Metal	0.551 in	14 mm	0.709 in			18.01 mm
HARTING Technology Group 09620005025	IP68 - Dust Tight Waterproof	10.5 mm	0.413 in	Silver	Cable Gland	PG11 PG13.5	Compression Nut	Metal	0.315 in	8 mm
HARTING Technology Group 09620005023	IP68 - Dust Tight Waterproof			Silver	Cable Gland	PG11	Compression Nut	Metal			0.256 "			6.5 mm	0.157 in	4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Metal PG11 Silver
