6GK57936DG000AA0
ActiveSiemens

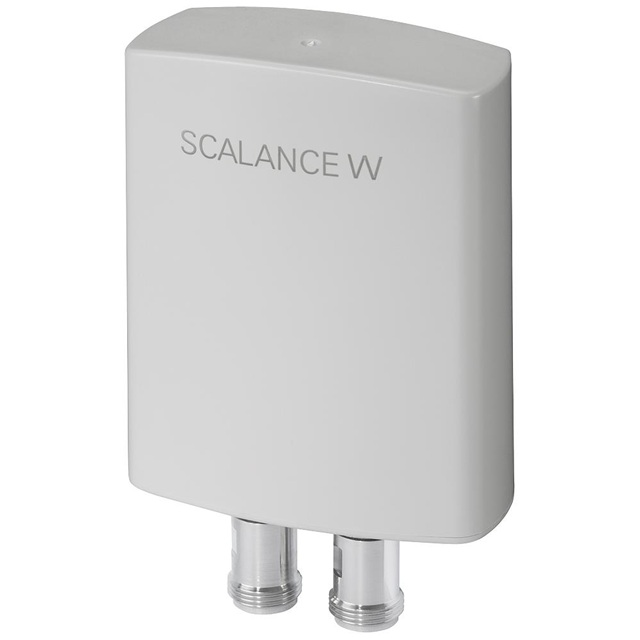

IWLAN ANTENNA ANT793-6DG
Deep-Dive with AI
Search across all available documentation for this part.
6GK57936DG000AA0
ActiveSiemens
IWLAN ANTENNA ANT793-6DG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6GK57936DG000AA0 |
|---|---|
| Antenna Type | Module |
| Applications | WLAN |
| Frequency (Center/Band) | 5.5125 GHz |
| Frequency Group | SHF |
| Frequency Range [Max] | 5.875 GHz |
| Frequency Range [Min] | 5.15 GHz |
| Gain | 9 dBi |
| Height (Max) [Max] | 3.976 in |
| Height (Max) [Max] | 101 mm |
| Ingress Protection | IP67, IP66 |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Termination | N Type Female (2) |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 437.23 | |
Description
General part information
6GK57936 Series
RF ANTENNA WLAN Module N Type Female (2) Connector Mount
