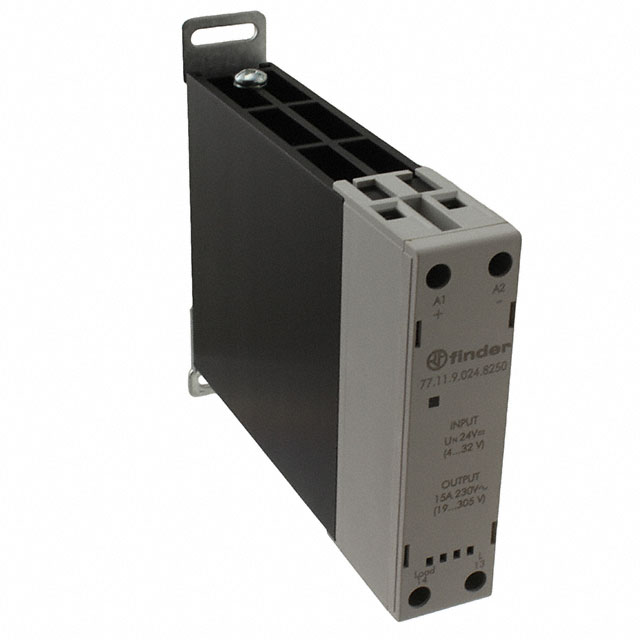

77.11.9.024.8250

Active

Finder Relays, Inc.

SSR RELAY SPST-NO 15A 19-305V

Search across all available documentation for this part.

Active

Finder Relays, Inc.

SSR RELAY SPST-NO 15A 19-305V

Technical Specifications

Parameters and characteristics for this part

Specification	77.11.9.024.8250

Approval Agency	CE, cULus, EAC, UKCA
Load Current	15 A
Mounting Type	DIN Rail
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Output Type	AC, Zero Cross
Package / Case	SSR with Integrated Heat Sink
Supplier Device Package	Module
Termination Style	Screw Terminal
Voltage - Input	24 V

Part	Output Type	Approval Agency	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Package / Case	Mounting Type	Load Current	Voltage - Input
Finder Relays, Inc. 77.11.9.024.8250	AC Zero Cross	CE cULus EAC UKCA	Screw Terminal	-20 C	80 C	Module	SSR with Integrated Heat Sink	DIN Rail	15 A	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Solid State SPST-NO (1 Form A) SSR with Integrated Heat Sink
