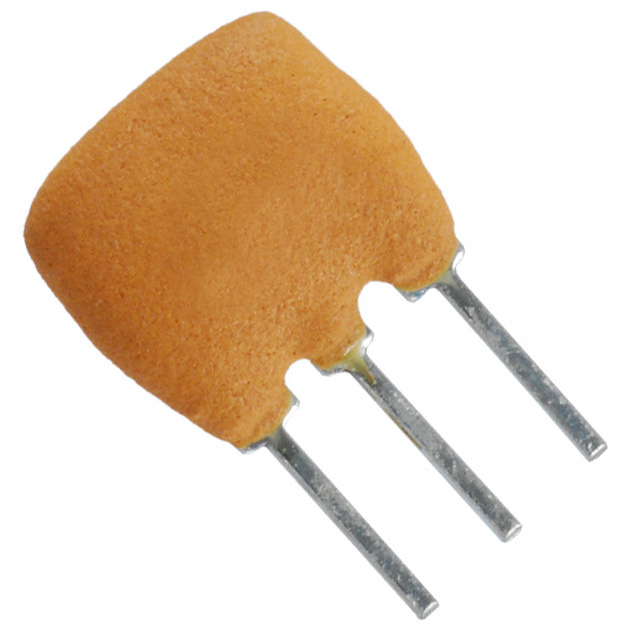

SFELF10M7FAA0-A0
ObsoleteMurata Power Solutions Inc.
FILTER 10.7MHZ 280KHZ BAND RADIA
Deep-Dive with AI
Search across all available documentation for this part.
SFELF10M7FAA0-A0
ObsoleteMurata Power Solutions Inc.
FILTER 10.7MHZ 280KHZ BAND RADIA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFELF10M7FAA0-A0 |
|---|---|
| Bandwidth | 280 kHz |
| Filter Type | FM |
| Frequency | 10.7 MHz |
| Height (Max) [Max] | 7.2 mm |
| Height (Max) [Max] | 0.283 in |
| Impedance | 330 Ohm |
| Insertion Loss | 2.5 dB |
| Mounting Type | Through Hole |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [y] | 0.118 in |
| Size / Dimension [y] | 3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SFELF Series
10.7MHz Center FM Ceramic Filter 280 kHz 330Ohm 3-SIP, 2.50mm pitch
