CA4B2,BK
ActiveSerpac

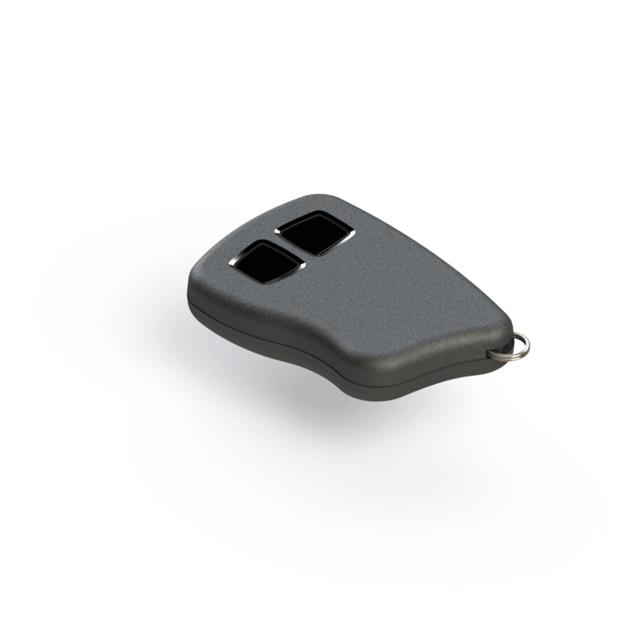

KEY FOB ABS BLK 2.53"L X 1.73"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CA4B2,BK
ActiveSerpac
KEY FOB ABS BLK 2.53"L X 1.73"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CA4B2,BK |
|---|---|
| Area (L x W) | 4.38 in² |
| Area (L x W) | 28.3 cm² |
| Color | Black |
| Container Type | Key FOB |
| Design | Split Sides, Hand Held |
| Features | Buttons - 2 |
| Height [z] | 16.51 mm |
| Height [z] | 0.65 " |
| Material | Plastic, ABS |
| Material Flammability Rating | UL94 HB |
| Ratings | IP67 |
| Size / Dimension [x] | 64.26 mm |
| Size / Dimension [x] | 2.53 in |
| Size / Dimension [y] | 1.73 " |
| Size / Dimension [y] | 43.94 mm |
| Weight | 0.018 lb |
| Weight | 8.16 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 7.09 | |
| 10 | $ 6.19 | |||
| 25 | $ 5.63 | |||
| 50 | $ 4.84 | |||
| 100 | $ 4.28 | |||
| 250 | $ 3.96 | |||
Description
General part information
CA4B2 Series
Key FOB Plastic, ABS Black Hand Held, Split Sides 2.530" L x 1.730" W (64.26mm x 43.94mm) X 0.650" (16.51mm)
