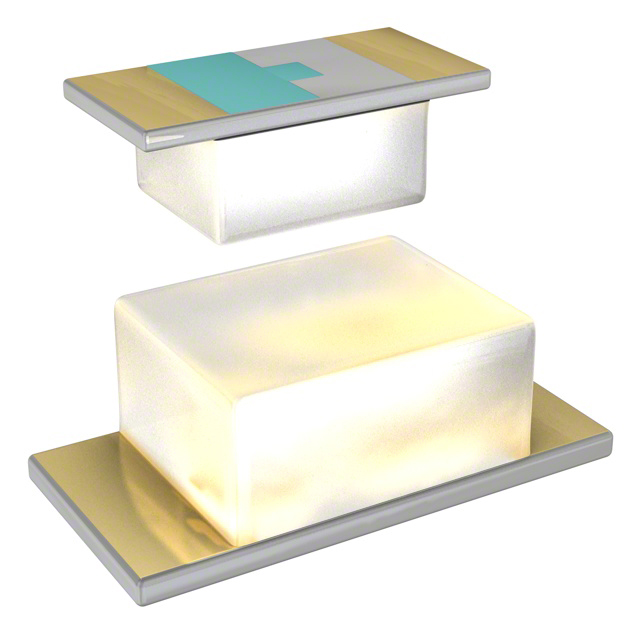

QTLP601C4TR

Active

Everlight Electronics Co Ltd

LED GREEN CLEAR 0603 SMD

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

LED GREEN CLEAR 0603 SMD

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [y]	Lens Size [y]	Lens Size [x]	Current - Test	Wavelength - Dominant	Lens Color	Package / Case	Lens Transparency	Mounting Type	Height (Max) [Max]	Viewing Angle	Color	Millicandela Rating	Configuration	Lens Style	Voltage - Forward (Vf) (Typ)	Wavelength - Peak
Everlight Electronics Co Ltd QTLP601CEBTR	1.6 mm	0.8 mm	0.8 mm	1.2 mm	5 mA	473 nm	Colorless	0603 (1608 Metric)	Clear	Surface Mount	0.6 mm	120 °	Blue	17 mcd	Standard	Rectangle with Flat Top	3.15 V
Everlight Electronics Co Ltd QTLP601C7TR	1.6 mm	0.8 mm	0.8 mm	1.2 mm	20 mA	645 nm	Colorless	0603 (1608 Metric)	Clear	Surface Mount	0.6 mm	120 °	Red	15 mcd	Standard	Rectangle with Flat Top	1.9 V	660 nm
Everlight Electronics Co Ltd QTLP601CYTR	1.6 mm	0.8 mm	0.8 mm	1.2 mm	20 mA	589 nm	Colorless	0603 (1608 Metric)	Clear	Surface Mount	0.6 mm	120 °	Yellow	35 mcd	Standard	Rectangle with Flat Top	2 V	590 nm
Everlight Electronics Co Ltd QTLP601CIGTR	1.6 mm	0.8 mm	0.8 mm	1.2 mm	20 mA	525 nm	Colorless	0603 (1608 Metric)	Clear	Surface Mount	0.6 mm	120 °	Green	70 mcd	Standard	Rectangle with Flat Top	3.5 V	520 nm
Everlight Electronics Co Ltd QTLP601CRTR	1.6 mm	0.8 mm	0.8 mm	1.2 mm	20 mA	624 nm	Colorless	0603 (1608 Metric)	Clear	Surface Mount	0.6 mm	120 °	Red	35 mcd	Standard	Rectangle with Flat Top	2 V	630 nm
Everlight Electronics Co Ltd QTLP601C4TR	1.6 mm	0.8 mm	0.8 mm	1.2 mm	20 mA	570 nm	Colorless	0603 (1608 Metric)	Clear	Surface Mount	0.6 mm	120 °	Green	15 mcd	Standard	Rectangle with Flat Top	2.1 V	565 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green 570nm LED Indication - Discrete 2.1V 0603 (1608 Metric)
