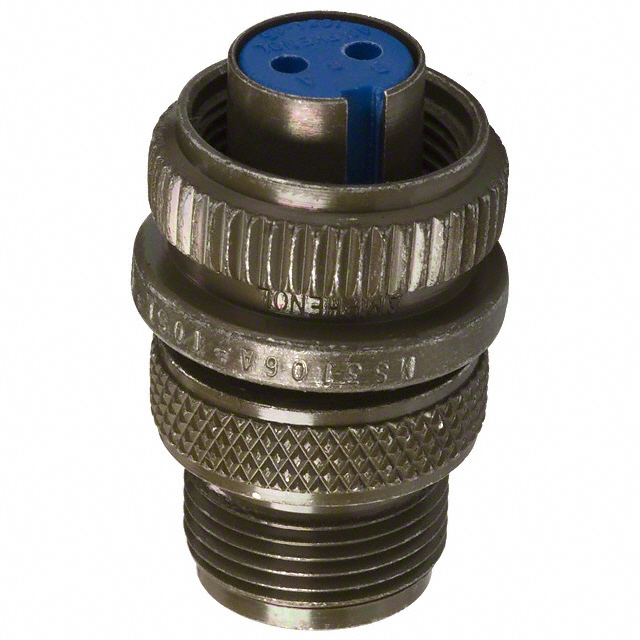

97-3106A-10SL-4S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 2P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN PLUG FMALE 2P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	97-3106A-10SL-4S

Applications	Industrial, Automotive
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Insert Material	Diallyl Phthalate (DAP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	10SL-4
Shielding	Unshielded

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Connector Type	Contact Finish - Mating	Contact Material	Shell Material	Color	Shell Size - Insert	Mounting Type	Primary Material	Orientation	Features	Applications	Shielding	Insert Material	Backshell Material, Plating	Number of Positions
Amphenol Industrial Operations 97-3106A-10SL-3S	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Female Sockets Plug	Silver	Copper Alloy	Aluminum Alloy	Olive Drab	10SL-3	Free Hanging (In-Line)	Metal	N	Backshell Coupling Nut	Automotive Industrial	Unshielded	Diallyl Phthalate (DAP)
Amphenol Industrial Operations 97-3106A-10SL-3S(946)	-55 °C	125 °C	Black Zinc Alloy	Female Sockets Plug	Silver	Copper Alloy	Aluminum Alloy	Black	10SL-3	Free Hanging (In-Line)	Metal	N	Backshell Coupling Nut	Automotive Industrial	Unshielded	Diallyl Phthalate (DAP)	Aluminum Alloy Black Zinc Alloy
Amphenol Industrial Operations 97-3106A10SL-4S-946	-55 °C	125 °C	Black Zinc Alloy	Female Sockets Plug	Silver	Copper Alloy	Aluminum Alloy	Black	10SL-4	Free Hanging (In-Line)	Metal	N	Backshell Coupling Nut	Automotive Industrial	Unshielded	Diallyl Phthalate (DAP)	Aluminum Alloy Black Zinc Alloy	2
Amphenol Industrial Operations 97-3106A-10SL-4S	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Female Sockets Plug	Silver	Copper Alloy	Aluminum Alloy	Olive Drab	10SL-4	Free Hanging (In-Line)	Metal	N	Backshell Coupling Nut	Automotive Industrial	Unshielded	Diallyl Phthalate (DAP)		2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Female Sockets Solder Cup
