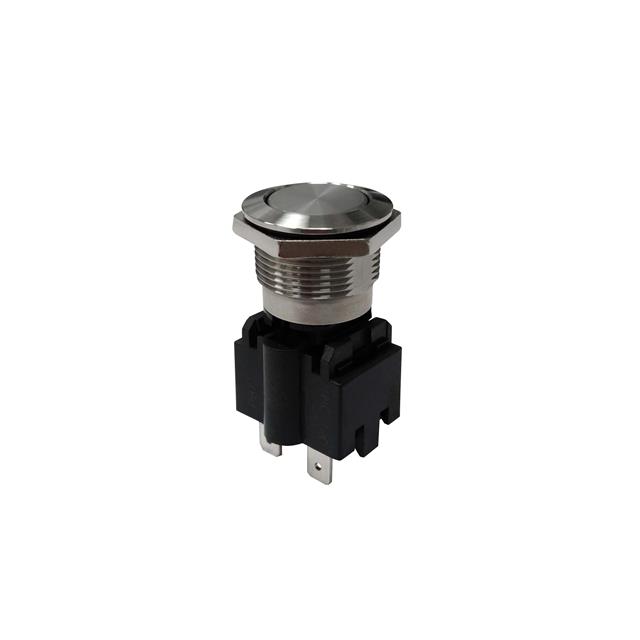

SW-PB7-05B22FR
ActiveAdam Tech
HIGH CURRENT ANTI-VANDAL PUSHBUT
Deep-Dive with AI
Search across all available documentation for this part.
SW-PB7-05B22FR
ActiveAdam Tech
HIGH CURRENT ANTI-VANDAL PUSHBUT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SW-PB7-05B22FR |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 16 A |
| Electrical Life | 10000 Cycles |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | Off-Mom |
| Termination Style | Solder, Quick Connect |
| Termination Style | 4.7 mm, 0.187 in |
| Type | Anti-Vandal |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 29.42 | |
| 10 | $ 25.39 | |||
| 48 | $ 22.95 | |||
| 96 | $ 21.94 | |||
| 144 | $ 21.38 | |||
| 288 | $ 20.44 | |||
Description
General part information
SW-PB7 Series
Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front
