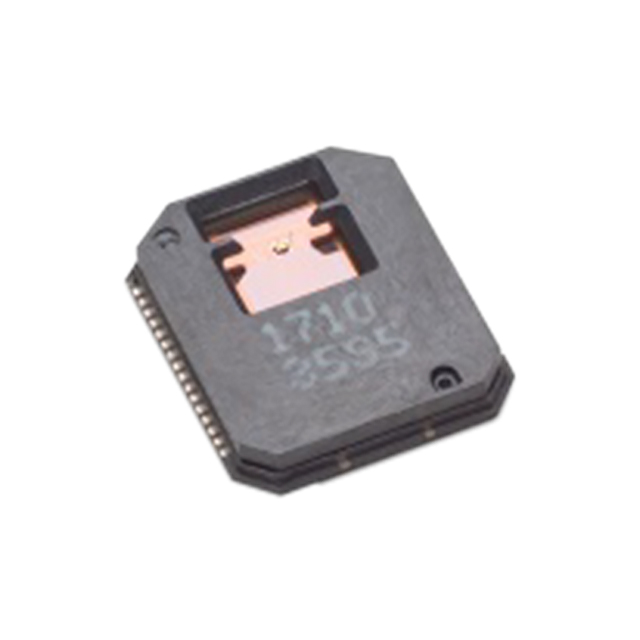

AR18-A21E

Active

Broadcom Limited

ROTARY ENCODER OPTICAL PROG

Search across all available documentation for this part.

Active

Broadcom Limited

ROTARY ENCODER OPTICAL PROG

Technical Specifications

Parameters and characteristics for this part

Specification	AR18-A21E

Actuator Type	External Magnet, Not Included
Built in Switch	False
Detent	False
Encoder Type	Optical
Mounting Type	Surface Mount
Pulses per Revolution	Programmable
Termination Style	Surface Mount (SMD,SMT)
Voltage - Supply [Max]	3.6 V, 5.5 V
Voltage - Supply [Min]	4.5 V, 3 V

Part	Pulses per Revolution	Termination Style	Mounting Type	Built in Switch	Voltage - Supply [Max]	Voltage - Supply [Min]	Encoder Type	Detent	Actuator Type
Broadcom Limited AR18-A21S	Programmable	Surface Mount (SMD SMT)	Surface Mount		3.6 V 5.5 V	3 V 4.5 V	Optical		External Magnet Not Included
Broadcom Limited AR18-A21E	Programmable	Surface Mount (SMD SMT)	Surface Mount		3.6 V 5.5 V	3 V 4.5 V	Optical		External Magnet Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	480	$ 25.23

General part information

Rotary Encoder Optical Programmable Digital

Technical documentation and resources

No documents available
