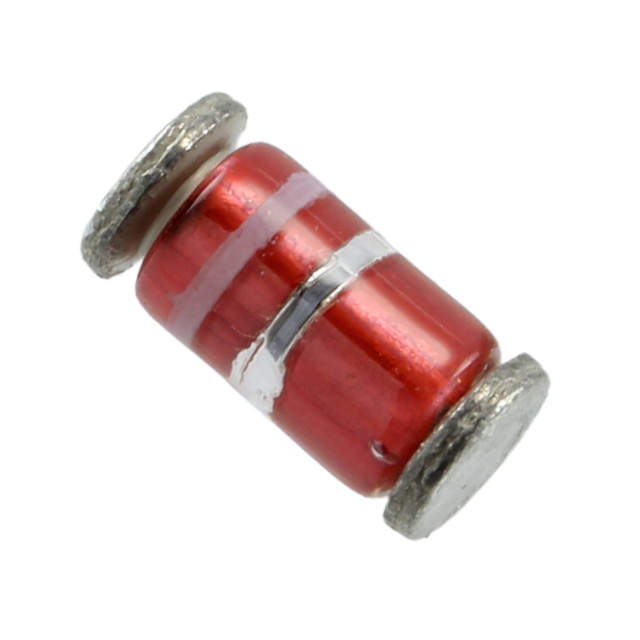

1N4734UR-1

Active

Microsemi Corporation

DIODE ZENER 5.6V 1W DO213AB

Search across all available documentation for this part.

Active

Microsemi Corporation

DIODE ZENER 5.6V 1W DO213AB

Technical Specifications

Parameters and characteristics for this part

Part	Tolerance	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Power - Max [Max]	Impedance (Max) (Zzt) [Max]	Current - Reverse Leakage @ Vr	Voltage - Zener (Nom) (Vz)	Supplier Device Package	Mounting Type	Voltage - Forward (Vf) (Max) @ If
Microsemi Corporation 1N4734A	5 %	Axial DO-204AL DO-41	-65 ░C	200 °C	1 W	5 Ohms	10 µA	5.6 V	DO-204AL (DO-41)	Through Hole
Microsemi Corporation 1N4734 G	10 %	Axial DO-204AL DO-41	-65 ░C	347 °F	1 W	5 Ohms	10 µA	5.6 V	DO-204AL (DO-41)	Through Hole	1.2 V
Microsemi Corporation 1N4734A G	5 %	Axial DO-204AL DO-41	-65 ░C	347 °F	1 W	5 Ohms	10 µA	5.6 V	DO-204AL (DO-41)	Through Hole	1.2 V
Microsemi Corporation 1N4734UR-1	10 %	DO-213AB MELF (Glass)	-65 ░C	347 °F	1 W	5 Ohms	10 µA	5.6 V	DO-213AB	Surface Mount	1.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	258	$ 3.17

General part information

Zener Diode 5.6 V 1 W ±10% Surface Mount DO-213AB

Technical documentation and resources

No documents available
