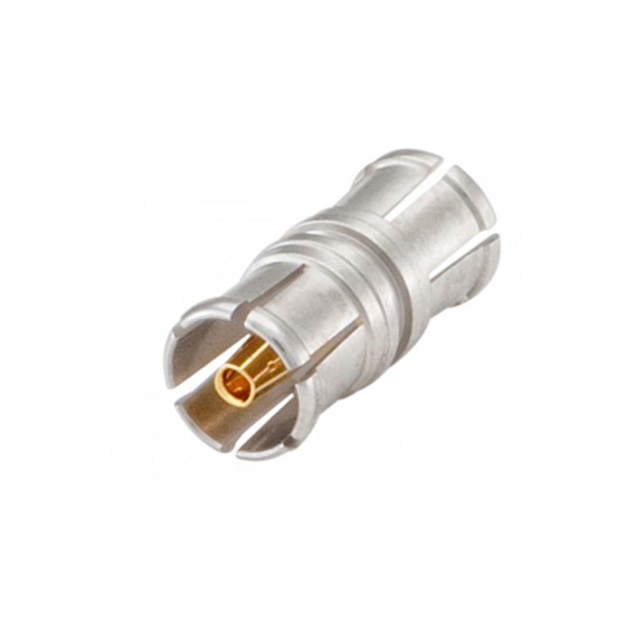

119K101-K00N5

Active

Rosenberger

ADAPT PMSP PLUG - PMSP PLUG

Search across all available documentation for this part.

Active

Rosenberger

ADAPT PMSP PLUG - PMSP PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	119K101-K00N5

Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	PSMP Jack, Female Socket
Convert To (Adapter End)	PSMP Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	10 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Dielectric Material	Housing Color	Body Finish	Impedance	Mounting Type	Contact Termination	Fastening Type	Body Material	Number of Ports	Center Contact Material	Voltage Rating	Connector Style	Center Contact Plating	Connector Type	Shield Termination	Type	For Use With/Related Products	Accessory Type	Convert To (Adapter End)	Adapter Type	Style	Conversion Type	Center Gender	Convert From (Adapter End)
Rosenberger 119K101-272N5	-65 ░C	165 °C	10 GHz	Polytetrafluoroethylene (PTFE)	Silver	White Bronze	50 Ohms	Free Hanging (In-Line)	Solder	Snap-On	Beryllium Copper	1	Beryllium Copper	480 V	PSMP	Gold	Female Socket Jack	Solder
Rosenberger 119K101-K20D3																			Specialized	Network Analyzer	Calibration Adapter
Rosenberger 119K101-K00N5	-65 ░C	165 °C	10 GHz	Polytetrafluoroethylene (PTFE)		White Bronze	50 Ohms	Free Hanging (In-Line)		Snap-On	Beryllium Copper		Beryllium Copper			Gold						Female Socket PSMP Jack	Jack to Jack	Straight	Same Series	Female to Female	PSMP Jack Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector PSMP Jack, Female Socket To PSMP Jack, Female Socket 50 Ohms
