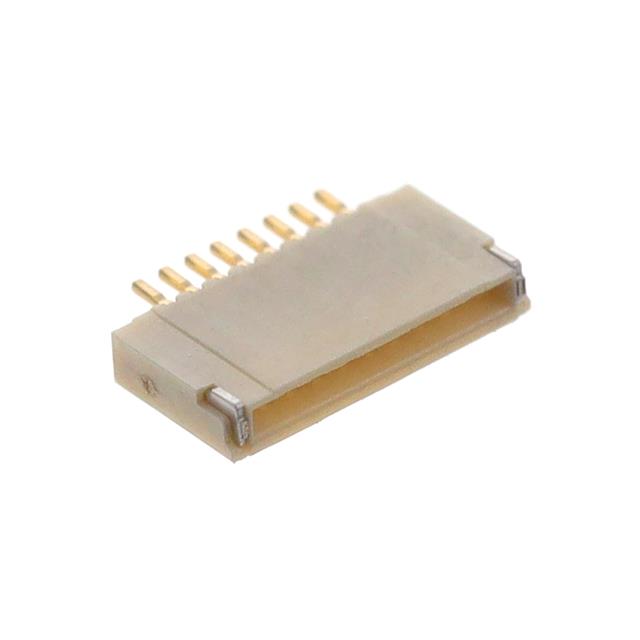

TF29-8S-0.4SH(800)

Active

Hirose Electric USA, Inc.

CONN FPC BOTTOM 8POS 0.4MM R/A

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN FPC BOTTOM 8POS 0.4MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	TF29-8S-0.4SH(800)

Actuator Color	Black
Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Notched
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Solder Retention
FFC, FCB Thickness	0.12 mm
Flat Flex Type	FPC
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Housing Color	Beige
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.016 in
Pitch [x]	0.4 mm
Termination	Solder
Voltage Rating	50 V

Part	Mounting Type	Housing Color	Pitch [x]	Pitch [x]	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Material Flammability Rating	Connector/Contact Type	Locking Feature	FFC, FCB Thickness	Height Above Board [z]	Height Above Board [z]	Number of Positions	Actuator Color	Flat Flex Type	Cable End Type	Housing Material	Actuator Material	Contact Material	Voltage Rating	Contact Finish	Current Rating (Amps)	Features
Hirose Electric USA, Inc. TF29-9S-0.4SH(800)	Surface Mount Right Angle	Beige	0.016 in	0.4 mm	20	85 °C	-55 °C	Solder	UL94 V-0	Contacts Bottom	Backlock Rotary Lock	0.12 mm	0.03 in	0.75 mm	9	Black	FFC FPC	Notched Tapered	Liquid Crystal Polymer (LCP) Halogen Free	Liquid Crystal Polymer (LCP) Halogen Free	Phosphor Bronze	50 V	Gold	0.5 A
Hirose Electric USA, Inc. TF29-13S-0.4SH(800)	Surface Mount Right Angle	Beige	0.016 in	0.4 mm	20	85 °C	-55 °C	Solder	UL94 V-0	Contacts Bottom	Backlock Rotary Lock	0.12 mm	0.03 in	0.75 mm	13	Black	FFC FPC	Notched Tapered	Liquid Crystal Polymer (LCP) Halogen Free	Liquid Crystal Polymer (LCP) Halogen Free	Phosphor Bronze	50 V	Gold	0.5 A
Hirose Electric USA, Inc. TF29-8S-0.4SH(800)	Surface Mount Right Angle	Beige	0.016 in	0.4 mm	20	85 °C	-55 °C	Solder	UL94 V-0	Contacts Bottom	Backlock Flip Lock	0.12 mm	0.03 in	0.75 mm	8	Black	FPC	Notched	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Phosphor Bronze	50 V	Gold	0.5 A	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position FPC Connector Contacts, Bottom 0.016" (0.40mm) Surface Mount, Right Angle
