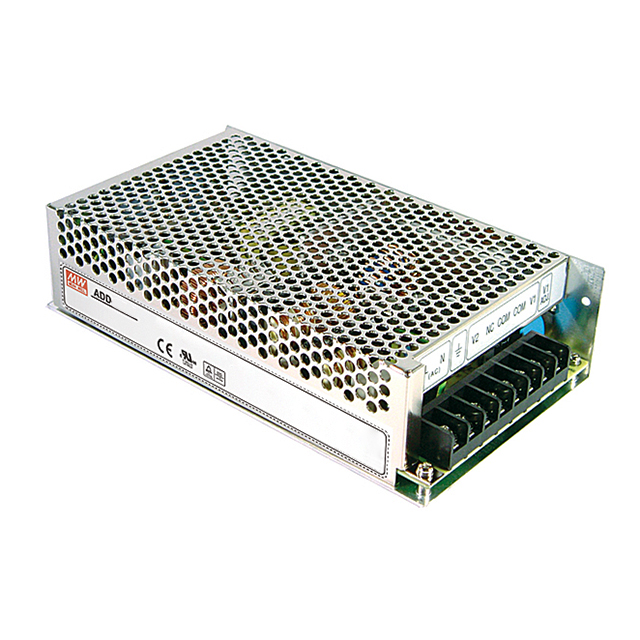

ADD-155C

Active

MEAN WELL USA Inc.

AC/DC CNVRTR 54V 5V 53.5V 150W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CNVRTR 54V 5V 53.5V 150W

Technical Specifications

Parameters and characteristics for this part

Specification	ADD-155C

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	2.3 A
Current - Output 2	3 A
Current - Output 3	200 mA
Efficiency	81 %
Features	PFC, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	150 W
Size / Dimension [x]	7.83 in
Size / Dimension [x]	199 mm
Size / Dimension [y]	4.33 "
Size / Dimension [y]	110 mm
Size / Dimension [z]	1.97 "
Size / Dimension [z]	50 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	88 VAC, 124 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	54 V
Voltage - Output 2	5 V
Voltage - Output 3	53.5 V

Part	Current - Output 3	Features	Voltage - Output 3	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Voltage - Output 2	Mounting Type	Voltage - Isolation	Approval Agency	Power (Watts)	Efficiency	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current - Output 2	Type	Current - Output 1	Voltage - Output 1
MEAN WELL USA Inc. ADD-155C	200 mA	Adjustable Output PFC Universal Input	53.5 V	-10 °C	60 °C	88 VAC 124 VDC	264 VAC 370 VDC	ITE (Commercial)	5 V	Chassis Mount	3000 V	CB CE cURus TUV	150 W	81 %	3	4.33 "	7.83 in	199 mm	110 mm	1.97 "	50 mm	3 A	Enclosed	2.3 A	54 V
MEAN WELL USA Inc. ADD-155B	500 mA	Adjustable Output PFC Universal Input	27.1 V	-10 °C	60 °C	88 VAC 124 VDC	264 VAC 370 VDC	ITE (Commercial)	5 V	Chassis Mount	3000 V	CB CE cURus TUV	153 W	81 %	3	4.33 "	7.83 in	199 mm	110 mm	1.97 "	50 mm	3 A	Enclosed	4.5 A	27.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 3 Output 54V 5V 53.5V 88 ~ 264 VAC, 124 ~ 370 VDC Input
