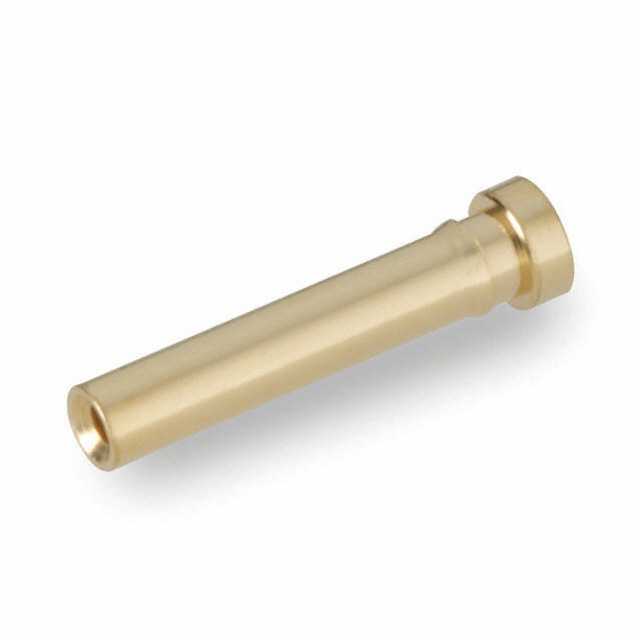

0303-0-19-15-16-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .022-.034 PRESSFIT

Deep-Dive with AI

Search across all available documentation for this part.

0303-0-19-15-16-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .022-.034 PRESSFIT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0303-0-19-15-16-27-10-0

Accepts Pin Diameter [Max]	0.86 mm
Accepts Pin Diameter [Max]	0.034 "
Accepts Pin Diameter [Min]	0.56 mm
Accepts Pin Diameter [Min]	0.022 "
Accepts Square Pin Size [diameter]	0.64 mm
Accepts Square Pin Size [diameter]	0.025 in
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	2.16 mm
Flange Diameter [diameter]	0.085 in
Length - Overall [x]	0.352 "
Length - Overall [x]	8.94 mm
Mounting Hole Diameter [diameter]	1.7 mm
Mounting Hole Diameter [diameter]	0.067 "
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	0.14 in
Socket Depth	3.56 mm
Tail Type	Crimp
Termination	Press-Fit

0303-0 Series

Part	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Contact Finish	Length - Overall [x]	Length - Overall [x]	Termination	Socket Depth	Socket Depth
Mill-Max Manufacturing Corp. 0303-0-19-15-16-27-10-0	2.16 mm	0.085 in	0.64 mm	0.025 in	0.76 Ám	30 Áin	1.7 mm	0.067 "	0.051 in	1.3 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	Beryllium Copper	-55 °C	125 °C	Crimp	Gold	0.352 "	8.94 mm	Press-Fit	0.14 in	3.56 mm
Mill-Max Manufacturing Corp. 0303-0-19-80-16-14-10-0	2.16 mm	0.085 in	0.64 mm	0.025 in	0.25 Ám	10 Áin	1.7 mm	0.067 "	0.051 in	1.3 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	Beryllium Copper	-55 °C	125 °C	Crimp	Gold	0.352 "	8.94 mm	Press-Fit	0.14 in	3.56 mm
Mill-Max Manufacturing Corp. 0303-0-19-80-16-27-10-0	2.16 mm	0.085 in	0.64 mm	0.025 in	0.76 Ám	30 Áin	1.7 mm	0.067 "	0.051 in	1.3 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	Beryllium Copper	-55 °C	125 °C	Crimp	Gold	0.352 "	8.94 mm	Press-Fit	0.14 in	3.56 mm
Mill-Max Manufacturing Corp. 0303-0-19-01-16-14-10-0	2.16 mm	0.085 in	0.64 mm	0.025 in	0.25 Ám	10 Áin	1.7 mm	0.067 "	0.051 in	1.3 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	Beryllium Copper	-55 °C	125 °C	Crimp	Gold	0.352 "	8.94 mm	Press-Fit	0.14 in	3.56 mm
Mill-Max Manufacturing Corp. 0303-0-19-80-16-80-10-0	2.16 mm	0.085 in	0.64 mm	0.025 in	5.08 Ám	200 Áin	1.7 mm	0.067 "	0.051 in	1.3 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	Beryllium Copper	-55 °C	125 °C	Crimp	Tin	0.352 "	8.94 mm	Press-Fit	0.14 in	3.56 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.73
		10	$ 0.64
		25	$ 0.58
		50	$ 0.55
		100	$ 0.53
		250	$ 0.48
		500	$ 0.46
		1000	$ 0.38
		3000	$ 0.34

Description

General part information

0303-0 Series

Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) Crimp Press-Fit
