HNC1-2.5S-12

Active

Hirose Electric USA, Inc.

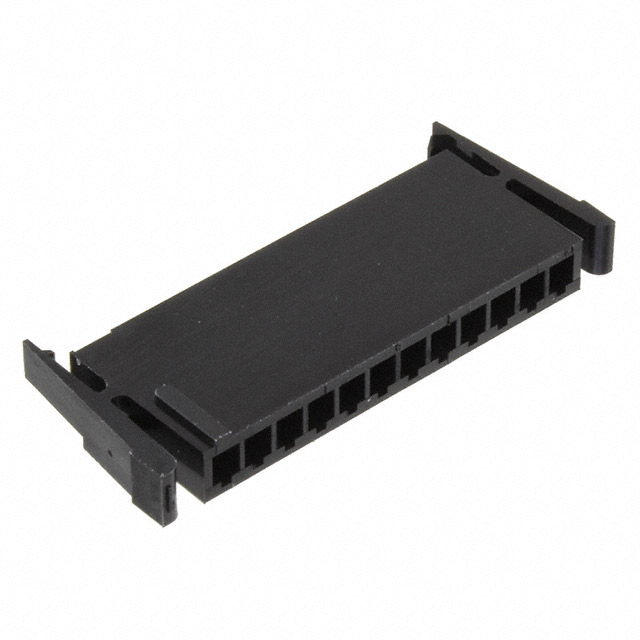

CONN RCPT HSG 12POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HNC1-2.5S-12

Active

Hirose Electric USA, Inc.

CONN RCPT HSG 12POS 2.50MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HNC1-2.5S-12

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

HNC1 Series

Part	Number of Rows	Shrouding	Insulation Height	Insulation Height	Mounting Type	Fastening Type	Contact Shape	Overall Contact Length	Overall Contact Length	Mated Stacking Heights	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Type	Insulation Color	Termination	Connector Type	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Style	Contact Material	Number of Positions	Number of Positions Loaded	Contact Finish - Mating	Contact Finish - Post	Contact Termination	Color	Note	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. HNC1-2.5P-12DS(55)	1	Unshrouded	6.5 mm	0.256 in	Through Hole	Push-Pull	Square	0.433 in	11 mm	15.5 mm	2.5 mm	0.098 in	85 °C	-55 °C	UL94 V-0	0.197 in	5 mm	Nylon Polyamide (PA)	Male Pin	Black	Solder	Header	250 VDC	1 µm	39.4 µin	0.118 in	3 mm	Board to Board Cable	Brass	12	All
Hirose Electric USA, Inc. HNC1-2.5P-12DS(02)	1	Unshrouded	6.5 mm	0.256 in	Through Hole	Push-Pull	Square	0.433 in	11 mm	15.5 mm	2.5 mm	0.098 in	85 °C	-55 °C	UL94 V-0	0.197 in	5 mm	Nylon Polyamide (PA)	Male Pin	Black	Solder	Header	250 VDC	0.203 Ám	8 Áin	0.118 in	3 mm	Board to Board Cable	Brass	12	All	Gold
Hirose Electric USA, Inc. HNC1-2.5P-12DSL(02)	1	Unshrouded	4.3 mm	0.169 "	Through Hole Right Angle	Push-Pull	Square				2.5 mm	0.098 in	85 °C	-55 °C	UL94 V-0	0.197 in	5 mm	Nylon Polyamide (PA)	Male Pin	Black	Solder	Header	250 VDC			0.118 in	3 mm	Board to Board Cable	Brass	12	All	Gold
Hirose Electric USA, Inc. HNC1-2.5P-12DSL(55)	1	Unshrouded	4.3 mm	0.169 "	Through Hole Right Angle	Push-Pull	Square				2.5 mm	0.098 in	85 °C	-55 °C	UL94 V-0	0.197 in	5 mm	Nylon Polyamide (PA)	Male Pin	Black	Solder	Header	250 VDC	1 µm	39.4 µin	0.118 in	3 mm	Board to Board Cable	Brass	12	All		Tin
Hirose Electric USA, Inc. HNC1-2.5S-12	1				Free Hanging (In-Line)	Latch Lock							85 °C	-55 °C				Nylon Polyamide (PA)	Female Socket			Receptacle								12				Crimp	Black	Contacts Not Included	0.098 in	2.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.54

Description

General part information

HNC1 Series

12 Rectangular Connectors - Housings Receptacle Black 0.098" (2.50mm)
