2B-4-36
ActiveTapeCase

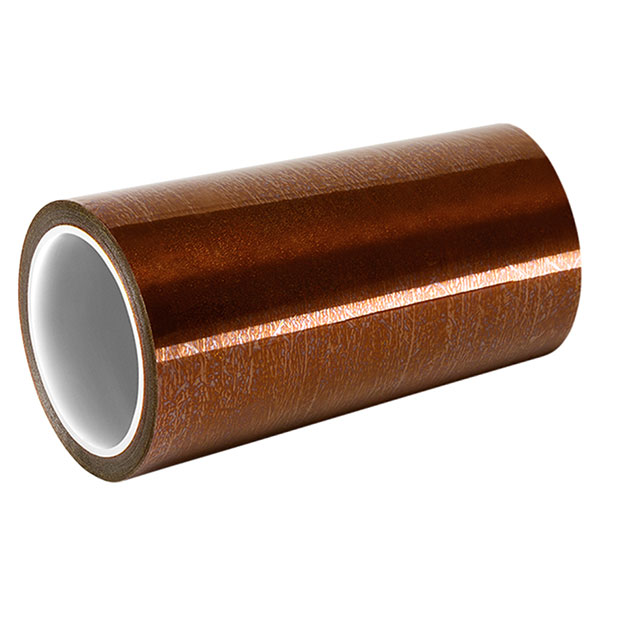

TAPE MASKING AMBER 4"X36YDS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2B-4-36
ActiveTapeCase
TAPE MASKING AMBER 4"X36YDS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2B-4-36 |
|---|---|
| Adhesive | Silicone |
| Backing, Carrier | Polyimide |
| Color | Amber |
| Length | 36 yd |
| Length | 32.9 m |
| Length | 108 ft |
| Tape Type | Masking |
| Temperature Range | 260 °C |
| Temperature Range | 500 °F |
| Thickness | 0.0035 " |
| Thickness | 88.9 microns |
| Thickness | 0.089 mm |
| Thickness - Adhesive | 1.5 mils |
| Thickness - Adhesive | 0.0015 in |
| Thickness - Adhesive | 0.038 mm |
| Thickness - Backing, Carrier | 0.002 " |
| Thickness - Backing, Carrier | 0.051 mm |
| Thickness - Backing, Carrier | 2 mils |
| Usage | Masking |
| Width [x] | 4 " |
| Width [x] | 101.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2 | $ 154.74 | |
Description
General part information
2B-4 Series
Masking Tape Silicone Adhesive Amber 4.00" (101.60mm) X 108' (32.9m) 36 yds
