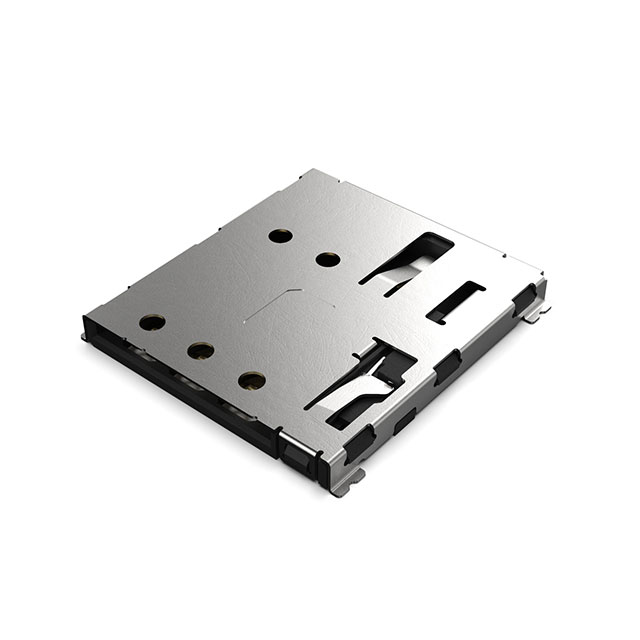

SIM8066-6-1-14-01-A
ActiveGCT
NANO SIM PUSH-PUSH 6P 1.44MM H G
Deep-Dive with AI
Search across all available documentation for this part.
SIM8066-6-1-14-01-A
ActiveGCT
NANO SIM PUSH-PUSH 6P 1.44MM H G
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIM8066-6-1-14-01-A |
|---|---|
| Card Type | NANO SIM |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Switch, Board Guide |
| Height Above Board [z] | 0.057 in |
| Height Above Board [z] | 1.45 mm |
| Insertion, Removal Method | Push Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions [custom] | 7 |
| Number of Positions [custom] | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.34 | |
| 10 | $ 1.14 | |||
| 25 | $ 1.09 | |||
| 50 | $ 1.07 | |||
| 100 | $ 1.02 | |||
| 250 | $ 0.93 | |||
| 500 | $ 0.83 | |||
| Digi-Reel® | 1 | $ 1.34 | ||
| 10 | $ 1.14 | |||
| 25 | $ 1.09 | |||
| 50 | $ 1.07 | |||
| 100 | $ 1.02 | |||
| 250 | $ 0.93 | |||
| 500 | $ 0.83 | |||
| Tape & Reel (TR) | 1500 | $ 0.70 | ||
| 3000 | $ 0.67 | |||
| 7500 | $ 0.65 | |||
| 10500 | $ 0.62 | |||
| 15000 | $ 0.60 | |||
Description
General part information
SIM8066 Series
7 (6 + 1) Position Card Connector NANO SIM Surface Mount, Right Angle Gold
