RJMG231022830ER

Active

Amphenol ICC (Commercial Products)

CONN JACK 1PORT 1000 BASE-T PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRJMG Series Datasheet

RJMG231022830ER

Active

Amphenol ICC (Commercial Products)

CONN JACK 1PORT 1000 BASE-T PCB

Deep-Dive with AI

DocumentsRJMG Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJMG231022830ER

Applications	AutoMDIX, 10/100/1000 Base-T
Connector Type	RJ45 with USB A, Dual
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Features	Board Guide
Height Above Board [z]	1.168 in
Height Above Board [z]	29.67 mm
Housing Material	Thermoplastic, Glass Filled
LED Color	Orange, Yellow - Green
Mounting Type	Through Hole
Number of Cores per Jack	8
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shield Material	Stainless Steel
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

RJMG2 Series

Part	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Shield Material	Contact Material	Number of Cores per Jack	Housing Material	Height Above Board	Height Above Board	Tab Direction	Mounting Type	Termination	Contact Finish	Number of Ports	Features	Applications	LED Color	Connector Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]
Amphenol ICC (Commercial Products) RJMG241102670CR-A	Shielded EMI Finger	70 °C	0 °C	90 °	Stainless Steel	Phosphor Bronze	8	Liquid Crystal Polymer (LCP)	31 mm	1.22 in	Up	Through Hole	Solder	Gold	1	Board Guide	10/100/1000 Base-T AutoMDIX	Orange Yellow - Green	Dual RJ45 with USB A	1	Flash
Amphenol ICC (Commercial Products) RJMG201220030NR	Shielded EMI Finger	85 °C	-40 °C	90 °	Stainless Steel	Phosphor Bronze	12	Polyester Thermoplastic			Up	Board Edge Through Hole	Solder	Gold	1	Board Guide	10/100/1000 Base-T AutoMDIX	Does Not Contain LED	RJ45	1		0.76 Ám	30 Áin	11.25 mm	0.443 "
Amphenol ICC (Commercial Products) RJMG251G32135DS
Amphenol ICC (Commercial Products) RJMG2012211A0FR	Shielded EMI Finger	85 °C	-40 °C	90 °	Stainless Steel	Phosphor Bronze	12	Thermoplastic	11.3 mm	0.445 in	Up	Board Edge Through Hole	Solder	Gold	1	Board Guide	10/100/1000 Base-T AutoMDIX	Green - Green	RJ45	1		1.27 µm	50 µin
Amphenol ICC (Commercial Products) RJMG2012119A0NR	Shielded	70 °C	0 °C	90 °	Stainless Steel	Phosphor Bronze	8	Polyester Thermoplastic			Up	Through Hole	Solder	Gold	1	Board Guide	10/100/1000 Base-T AutoMDIX	Green Yellow - Green	RJ45	1		0.76 Ám	30 Áin	11.25 mm	0.443 "
Amphenol ICC (Commercial Products) RJMG2010S9930NR	Shielded EMI Finger			90 °	Copper Alloy	Copper Alloy	8	Thermoplastic	11.38 mm	0.448 in	Down	Through Hole	Solder	Gold	1	Board Guide	10/100/1000 Base-T AutoMDIX	Green Yellow	RJ45	1		0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) RJMG241156670ER-B	Shielded EMI Finger	85 °C	-40 °C	90 °	Stainless Steel	Phosphor Bronze	8	Thermoplastic Glass Filled				Through Hole	Solder	Gold	1		10/100/1000 Base-T AutoMDIX			1
Amphenol ICC (Commercial Products) RJMG231022830ER	Shielded EMI Finger	85 °C	-40 °C	90 °	Stainless Steel	Phosphor Bronze	8	Thermoplastic Glass Filled			Up	Through Hole	Solder	Gold	1	Board Guide	10/100/1000 Base-T AutoMDIX	Orange Yellow - Green	Dual RJ45 with USB A	1		0.76 Ám	30 Áin	29.67 mm	1.168 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	6400	$ 1.83

Description

General part information

RJMG2 Series

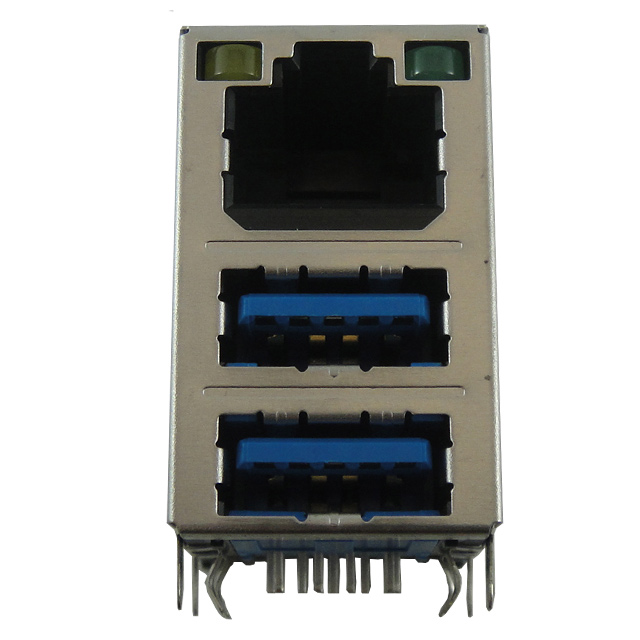

1 Port RJ45 with USB A, DualThrough Hole 10/100/1000 Base-T, AutoMDIX

Documents

Technical documentation and resources

RJMG Series Datasheet

Datasheet
