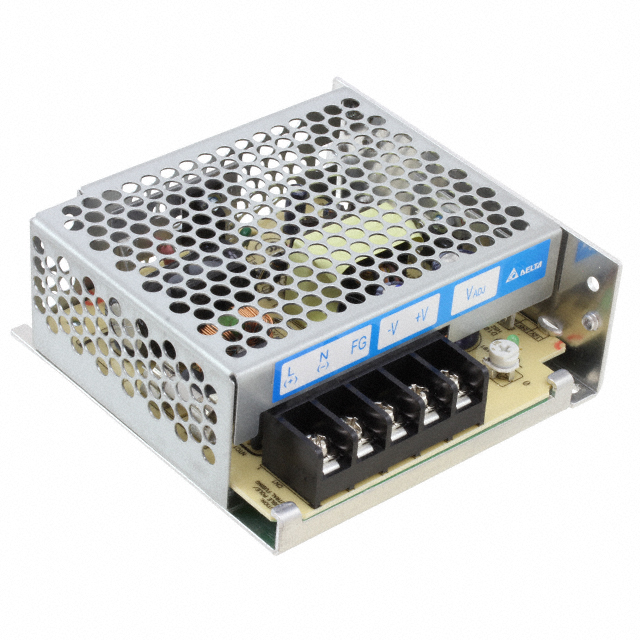

PMT-12V35W1AA

Obsolete

Delta Electronics

AC/DC CONVERTER 12V 35W

Search across all available documentation for this part.

Obsolete

Delta Electronics

AC/DC CONVERTER 12V 35W

Technical Specifications

Parameters and characteristics for this part

Specification	PMT-12V35W1AA

Applications	ITE (Commercial)
Approval Agency	TUV, cURus, CB, CCC, CE
Current - Output 1	2.92 A
Efficiency	84 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	35 W
Size / Dimension [x]	3.86 in
Size / Dimension [x]	98 mm
Size / Dimension [y]	3.86 in
Size / Dimension [y]	98 mm
Size / Dimension [z]	1.5 "
Size / Dimension [z]	38 mm
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Number of Outputs	Type	Voltage - Isolation	Approval Agency	Features	Mounting Type	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1
Delta Electronics PMT-12V50W1AH	1	Enclosed	3000 V	CB CCC CE cURus TUV	Adjustable Output Universal Input	Chassis Mount	50 W	90 VAC	264 VAC	12 V	3.86 in	3.86 in	1.5 "	98 mm	98 mm	38 mm	83 %	ITE (Commercial)	-10 °C	70 °C	4.17 A
Delta Electronics PMT-12V35W1AA	1	Enclosed	3000 V	CB CCC CE cURus TUV	Adjustable Output Universal Input	Chassis Mount	35 W	90 VAC	264 VAC	12 V	3.86 in	3.86 in	1.5 "	98 mm	98 mm	38 mm	84 %	ITE (Commercial)	-10 °C	70 °C	2.92 A
