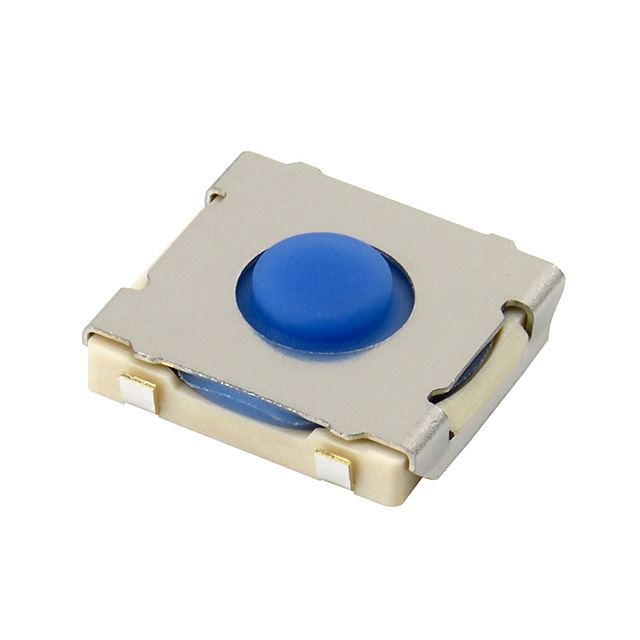

B3SE-1002P

Active

Omron Electronics Inc-EMC Div

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	B3SE-1002P

Actuator Height off PCB, Vertical [z]	2 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Sealed - Fully
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Surface Mount
Operating Force	200 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	7 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Termination Style	J Lead

Part	Contact Rating @ Voltage	Features	Actuator Type	Operating Force	Mounting Type	Actuator Height off PCB, Vertical [z]	Illumination	Ingress Protection	Actuator Orientation	Switch Function	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Outline [x]	Outline [y]	Mechanical Life	Termination Style
Omron Electronics Inc-EMC Div B3SE-1002	0.05 A 12 VDC	Sealed - Fully	Standard	200 gf	Surface Mount	2 mm	Non-Illuminated	IP67 - Dust Tight Waterproof	Top Actuated	Off-Mom	SPST-NO	70 °C	-25 °C	7 mm	6.2 mm	1000000 Cycles	J Lead
Omron Electronics Inc-EMC Div B3SE-1002P	0.05 A 12 VDC	Sealed - Fully	Standard	200 gf	Surface Mount	2 mm	Non-Illuminated	IP67 - Dust Tight Waterproof	Top Actuated	Off-Mom	SPST-NO	70 °C	-25 °C	7 mm	6.2 mm	1000000 Cycles	J Lead
