TS2C5M20C

Active

Switchcraft Inc.

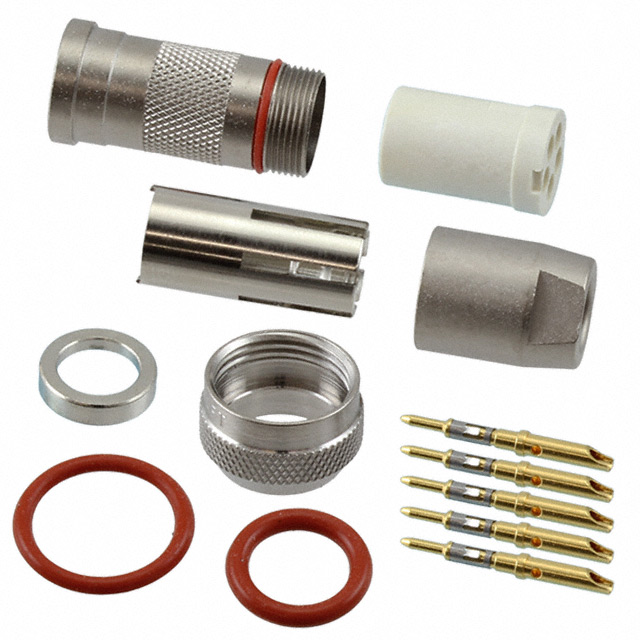

CONN PLUG MALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG MALE 5POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	TS2C5M20C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Backshell Material, Plating	Copper Alloy, Nickel
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

Part	Contact Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Orientation	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Features	Connector Type	Insert Material	Color	Contact Finish - Mating	Voltage Rating	Shell Finish	Backshell Material, Plating	Ingress Protection	Primary Material	Shell Material	Shielding	Applications
Switchcraft Inc. TS2C5M20C	Copper Alloy	5.49 mm	4.57 mm	0.18 in	0.216 in	Keyed	Free Hanging (In-Line)	135 °C	-40 °C	Crimp Solder Cup	Backshell Coupling Nut	Male Pins Plug	Liquid Crystal Polymer (LCP)	Silver	Gold	125 VAC	Electroless Nickel	Copper Alloy Nickel	IP66 IP67 IP68	Metal	Copper Alloy	Shielded	Agriculture Audio General Medical Testing Equipment & Measurement

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.97

General part information

5 Position Circular Connector Plug, Male Pins Crimp or Solder Cup
