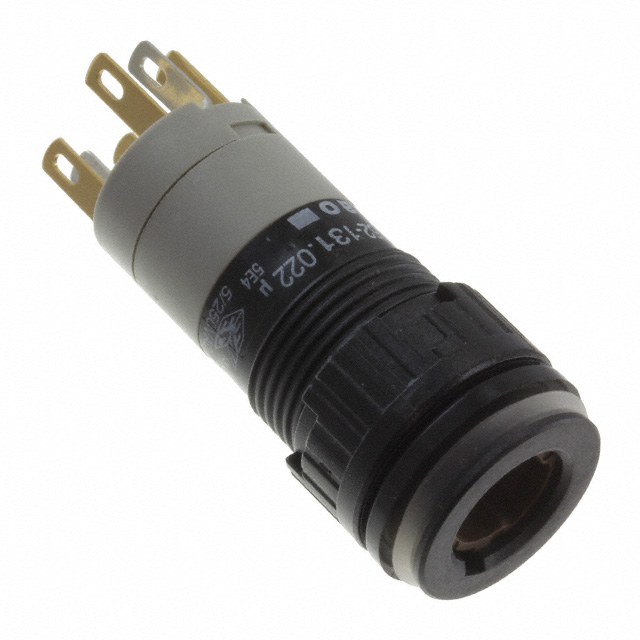

52-131.022

Active

EAO

SWITCH SELECT 2POS DPST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH SELECT 2POS DPST 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	52-131.022

Approval Agency	CB, CSA, UL, CE
Circuit	DPST-NO/NC
Current Rating (Amps)	5 A
Illumination	Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	2000000 Cycles
Number of Positions	2
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	Off-Mom, On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	250 V

Part	Panel Cutout Dimensions [diameter]	Ingress Protection	Approval Agency	Illumination	Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Termination Style	Circuit	Mechanical Life	Current Rating (Amps)	Switch Function	Voltage Rating - AC	Termination Style	Termination Style
EAO 52-131.025	16.2 mm	IP65 - Dust Tight Water Resistant	CB CE CSA UL	Illuminated	Standard	55 °C	-25 °C	2	Solder Lug	DPST-NO/NC	2000000 Cycles	5 A	Off-Mom On-Mom	250 V
EAO 52-131.022	16.2 mm	IP65 - Dust Tight Water Resistant	CB CE CSA UL	Illuminated	Standard	55 °C	-25 °C	2	Quick Connect Solder	DPST-NO/NC	2000000 Cycles	5 A	Off-Mom On-Mom	250 V	0.11 in	2.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Selector Switch 2 Position DPST-NO/NC 5A (AC) 250 V Panel Mount
