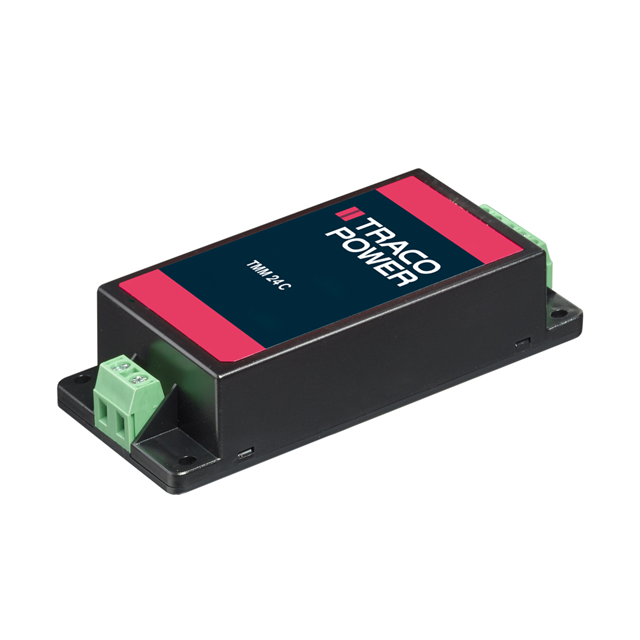

TMM 24105C

Active

Traco Power

AC/DC CONVERTER 5V 15W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 5V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	TMM 24105C

Applications	Industrial, ITE (Commercial), Medical
Approval Agency	cULus, CE, cURus, CB
Current - Output 1	3 A
Efficiency	77 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-40 °C
Power (Watts)	15 W
Size / Dimension [x]	96 mm
Size / Dimension [x]	3.78 "
Size / Dimension [y]	2.13 in
Size / Dimension [y]	54.1 mm
Size / Dimension [z]	0.92 "
Size / Dimension [z]	23.4 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	5 V

Part	Current - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Approval Agency	Number of Outputs	Efficiency	Power (Watts)	Type	Features	Minimum Load Required	Voltage - Isolation	Applications	Mounting Type
Traco Power TMM 24105C	3 A	0.92 "	23.4 mm	96 mm	2.13 in	3.78 "	54.1 mm	85 VAC 120 VDC	264 VAC 370 VDC	-40 °C	80 ¯C	5 V	CB CE cULus cURus	1	77 %	15 W	Enclosed	Adjustable Output Universal Input		4000 V	Industrial ITE (Commercial) Medical	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 5V 85 ~ 264 VAC, 120 ~ 370 VDC Input
