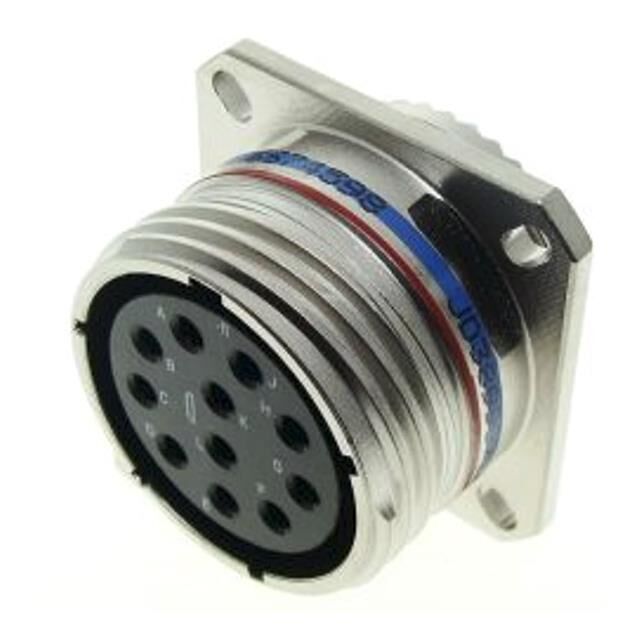

D38999/20LD15SNL

Active

Corsair

D38999 SER III RECEPTACLE

Search across all available documentation for this part.

Active

Corsair

D38999 SER III RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20LD15SNL

Connector Type	Receptacle Housing
Contact Type	Crimp
Housing Color	Silver
Includes	1 pc - 1 Insert Shell
Ingress Protection	Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	15
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Shell Size, MIL	D
Type	For Female Sockets

Part	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Number of Positions	Termination	Orientation	Applications	Mounting Feature	Shell Size, MIL	Contact Finish - Mating	Connector Type	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Contact Material	Grade	Qualification	Insert Material	Material Flammability Rating	Ingress Protection	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Includes	Housing Color	Type	Contact Type	Note
Corsair D38999/20LD19HN	19	15	19	Crimp	N	Aviation Marine Military	Flange	D	Gold	Male Pins Receptacle	Unshielded
Corsair D38999/20LD19PNL
Corsair D38999/20LD18PN			18	Crimp	N	Aerospace Aviation Military	Flange	D	Gold	Receptacle Female Sockets	Unshielded	125 °C	-65 ░C	Metal	Copper Alloy	Military	MIL-DTL-38999 Series III	Thermoplastic	UL94 V-0	Waterproof	18	15
Corsair D38999/20LD15SNL			15		N		Flange	D		Receptacle Housing		200 °C	-65 ░C	Metal				Thermoplastic	UL94 V-0	Waterproof			1 pc - 1 Insert Shell	Silver	For Female Sockets	Crimp	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position Circular Connector Receptacle Housing Panel Mount
