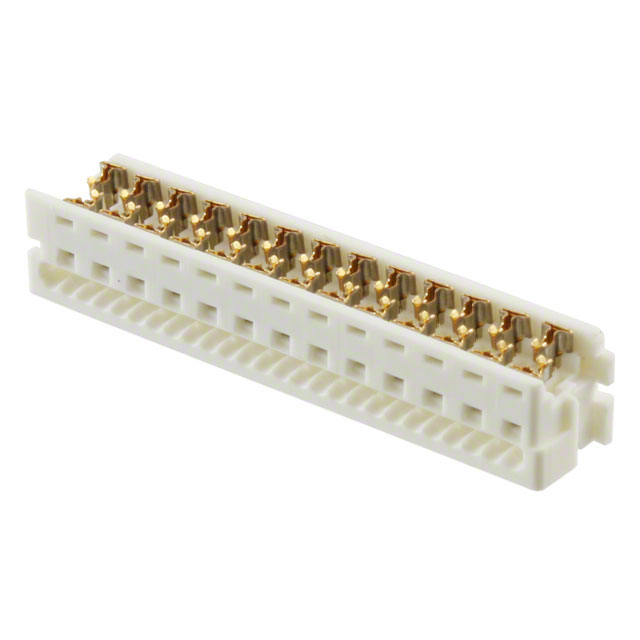

0903273326

Active

Molex

CONN RCPT 26POS IDC 26-28AWG

Search across all available documentation for this part.

Active

Molex

CONN RCPT 26POS IDC 26-28AWG

Technical Specifications

Parameters and characteristics for this part

Picoflex PF-50, Low Profile, IDT Receptacle, 8 Circuits, White, Gold (Au) Plated, Reeling Option B

Part	Wire Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions	Cable Termination	Connector Type	Mounting Type	Contact Type	Contact Finish	Pitch [x]	Pitch [x]	Features	Number of Positions
Molex 0903273312	Ribbon Cable	1	24 µin	0.61 µm	White	12	IDC	Receptacle	Free Hanging (In-Line)	Female Socket	Palladium-Nickel	0.05 in	1.27 mm	Feed Through
Molex 903270359	Ribbon Cable	1	78.7 µin	2 µm	White	8	IDC	Receptacle	Free Hanging (In-Line)	Female Socket	Tin	0.1 in	2.54 mm	Feed Through
Molex 0903273316	Ribbon Cable	1	24 µin	0.61 µm	White		IDC	Receptacle	Free Hanging (In-Line)	Female Socket	Palladium-Nickel	0.05 in	1.27 mm	Feed Through	16
Molex 903270371	Ribbon Cable	2	78.7 µin	2 µm	White	14	IDC	Receptacle	Free Hanging (In-Line)	Female Socket	Tin	0.1 in	2.54 mm	Feed Through
Molex 903273360
Molex 0903273314	Ribbon Cable	1	24 µin	0.61 µm	White	14	IDC	Receptacle	Free Hanging (In-Line)	Female Socket	Palladium-Nickel	0.05 in	1.27 mm	Feed Through
Molex 903270365	Ribbon Cable	2	78.7 µin	2 µm	White	10	IDC	Receptacle	Free Hanging (In-Line)	Female Socket	Tin	0.1 in	2.54 mm	Feed Through
Molex 0903273318	Ribbon Cable	1	24 µin	0.61 µm	White	18	IDC	Receptacle	Free Hanging (In-Line)	Female Socket	Palladium-Nickel	0.05 in	1.27 mm	Feed Through
Molex 0903273326	Ribbon Cable	1	24 µin	0.61 µm	White	26	IDC	Receptacle	Free Hanging (In-Line)	Female Socket	Palladium-Nickel	0.05 in	1.27 mm	Feed Through

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Picoflex PF-50, Low Profile, IDT Receptacle, 8 Circuits, White, Gold (Au) Plated, Reeling Option B
