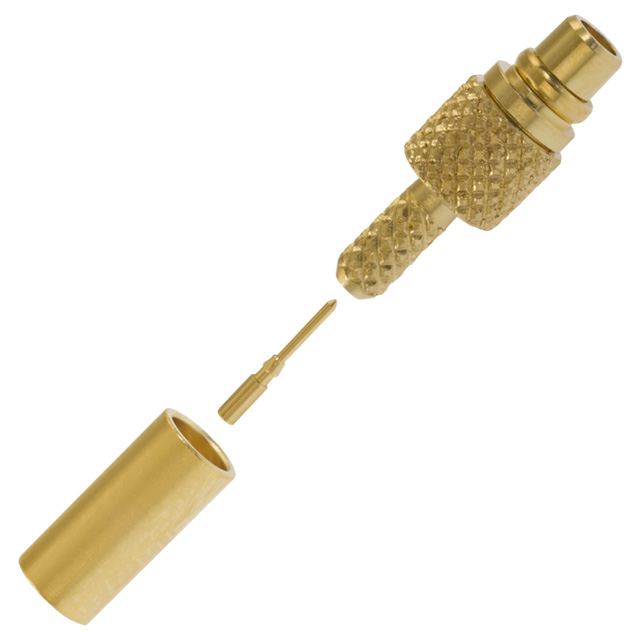

MMCX-P-178B/U

Obsolete

Hirose Electric USA, Inc.

CONN MMCX PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN MMCX PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	MMCX-P-178B/U

Body Finish	Gold
Body Material	Brass
Cable Group	RG-178B
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp

Part	Body Material	Impedance	Frequency - Max [Max]	Mounting Type	Dielectric Material	Shield Termination	Connector Style	Housing Color	Contact Termination	Body Finish	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Fastening Type	Number of Ports	Connector Type	Mating Cycles	Cable Group
Hirose Electric USA, Inc. MMCX-P-FHSB(40)	Brass	50 Ohms	6000 MHz	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	MMCX	Gold	Solder	Gold	Phosphor Bronze	85 °C	-55 °C	Gold	Snap-On	1	Male Pin Plug	500
Hirose Electric USA, Inc. MMCX-P-066(40)	Brass	50 Ohms	6000 MHz	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	MMCX	Gold	Solder	Gold	Phosphor Bronze	85 °C	-55 °C	Gold	Snap-On	1	Male Pin Plug	500
Hirose Electric USA, Inc. MMCX-P-178B/U	Brass	50 Ohms	6000 MHz	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	MMCX	Gold	Solder	Gold	Phosphor Bronze	85 °C	-55 °C	Gold	Snap-On	1	Male Pin Plug	500	RG-178B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MMCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
