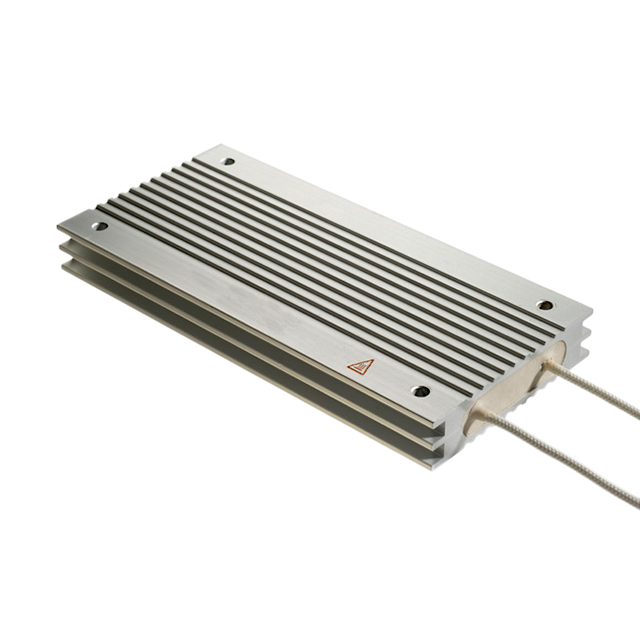

ARF500 16R J
ActiveOhmite
METAL CLAD 500 W 16 OHM 5%
Deep-Dive with AI
Search across all available documentation for this part.
ARF500 16R J
ActiveOhmite
METAL CLAD 500 W 16 OHM 5%
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ARF500 16R J |
|---|---|
| Coating, Housing Type | Aluminum |
| Composition | Wirewound |
| Features | Pulse Withstanding |
| Height - Seated (Max) [Max] | 18.5 mm |
| Height - Seated (Max) [Max] | 0.728 in |
| Lead Style | Wire Leads |
| Mounting Feature | Screw Holes |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | Rectangular Case |
| Power (Watts) | 500 W |
| Resistance | 16 Ohms |
| Size / Dimension [x] | 270 mm |
| Size / Dimension [x] | 10.63 in |
| Size / Dimension [y] | 3.11 " |
| Size / Dimension [y] | 79 mm |
| Temperature Coefficient | 150 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.75 | |
| 1 | $ 65.47 | |||
| 10 | $ 54.99 | |||
| 25 | $ 53.31 | |||
| 50 | $ 50.50 | |||
| 100 | $ 46.30 | |||
Description
General part information
ARF500 Series
16 Ohms ±5% 500W Wirewound Chassis Mount Resistor
