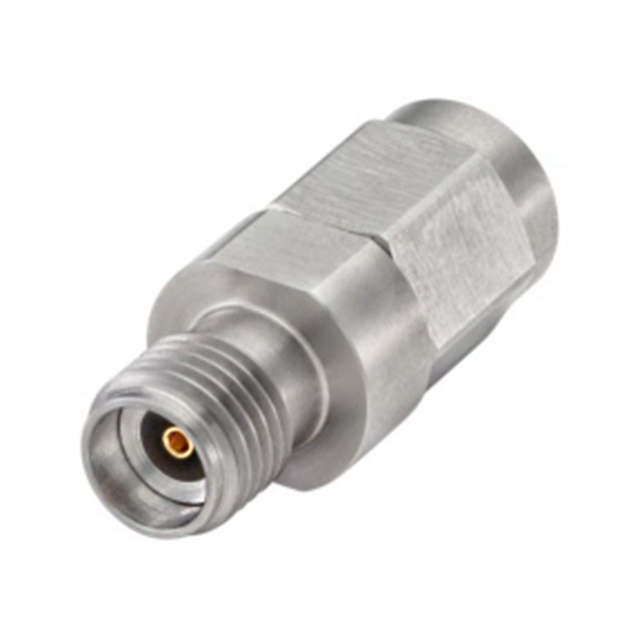

02K109-S00S3
ActiveRosenberger
PRECISION 2.92 ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
02K109-S00S3
ActiveRosenberger
PRECISION 2.92 ADAPTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 02K109-S00S3 |
|---|---|
| Adapter Series | RPC-2.92 to RPC-2.40 |
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | 2.92 mm |
| Convert From (Adapter End) | OS-2.9, Jack, Female Socket |
| Convert To (Adapter End) | 2.4mm (APC-2.4, OS-50) Plug, Male Pin |
| Dielectric Material | Polystyrene (PS) |
| Frequency - Max [Max] | 40 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.32 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 347.71 | |
Description
General part information
02K109 Series
Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 2.4mm (APC-2.4, OS-50) Plug, Male Pin 50 Ohms
