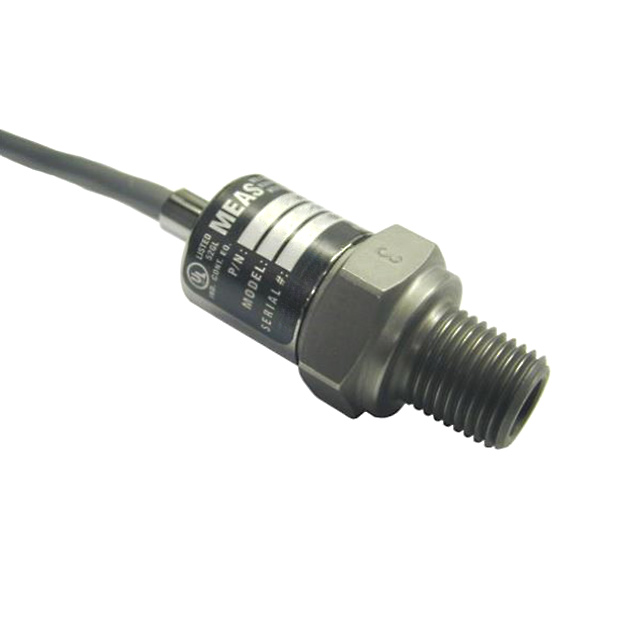

M3021-000002-017BG

Active

TE Connectivity Measurement Specialties

TRANSDUCER

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

TRANSDUCER

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Port Style	Applications	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Output [Max]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Maximum Pressure [Max]	Maximum Pressure [Max]	Accuracy	Pressure Type	Features	Package / Case	Operating Pressure	Operating Pressure	Maximum Pressure	Maximum Pressure	Port Size	Port Size
TE Connectivity Measurement Specialties M3021-000005-250PG	Cable	Threaded	Industrial Automation	NPT	0.25 "	6.35 mm	Male	100 mV	Analog Voltage	85 °C	-20 C	500 PSI	3447.38 kPa	1 %	Vented Gauge	Amplified Output Temperature Compensated	Cylinder Threaded	250 PSI	1723.69 kPa
TE Connectivity Measurement Specialties M3021-000005-05KPG	Cable	Threaded	Industrial Automation	NPT	0.25 "	6.35 mm	Male	100 mV	Analog Voltage	85 °C	-20 C			1 %	Vented Gauge	Amplified Output Temperature Compensated	Cylinder Threaded	5000 PSI	34473.79 kPa	10000 PSI	68947.57 kPa
TE Connectivity Measurement Specialties M3021-000005-2K5PG	Cable	Threaded	Industrial Automation	NPT	0.25 "	6.35 mm	Male	100 mV	Analog Voltage	85 °C	-20 C	5000 PSI	34473.79 kPa	1 %	Vented Gauge	Temperature Compensated	Cylinder Threaded	2500 PSI	17236.89 kPa
TE Connectivity Measurement Specialties M3021-000002-017BG	Wire Leads	Threaded	Industrial Automation					100 mV	Analog Voltage	85 °C	-20 C	493.13 PSI	3400 kPa	1 %	Vented Gauge	Temperature Compensated	Cylinder	246.56 PSI	1700 kPa			BSPP Male	6.35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	40	$ 47.13

General part information

TRANSDUCER

Technical documentation and resources

No documents available
