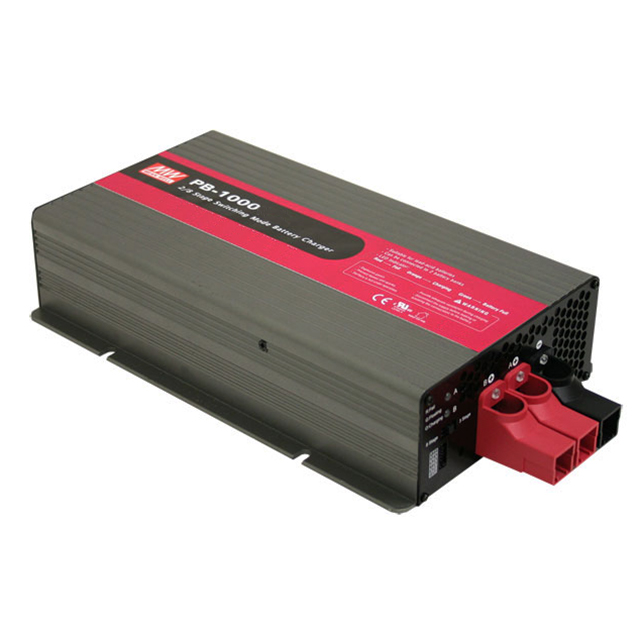

PB-1000-12
ObsoleteMEAN WELL USA Inc.
BATT CHARGER ENCLOSED 14.4V 60A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PB-1000-12
ObsoleteMEAN WELL USA Inc.
BATT CHARGER ENCLOSED 14.4V 60A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PB-1000-12 |
|---|---|
| Approval Agency | CB, CE, cURus, TUV |
| Battery Cell Size | 12 V |
| Battery Chemistry | Lithium-Ion, Lead Acid |
| Charge Current - Max [Max] | 60 A |
| Features | LED Indicator |
| Mounting Type | Chassis Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Power - Max [Max] | 1000 W |
| Size / Dimension [x] | 11.81 in |
| Size / Dimension [x] | 300 mm |
| Size / Dimension [y] | 7.24 " |
| Size / Dimension [y] | 184 mm |
| Size / Dimension [z] | 70 mm |
| Size / Dimension [z] | 2.76 in |
| Termination Style | Screw Terminal |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC, 370 VDC |
| Voltage - Input [Min] | 90 VAC, 127 VDC |
| Voltage - Nominal | 14.4 V |
| Weight | 3500 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 395.53 | |
| 5 | $ 376.69 | |||
| 10 | $ 368.86 | |||
Description
General part information
PB-1000 Series
Enclosed Battery Charger 14.4V 60A 12V
