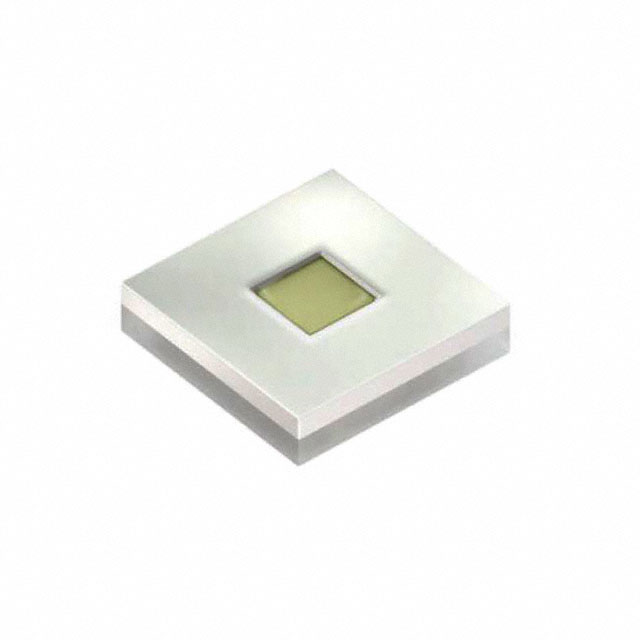

KB CSLNM1.14-4V7A-46-0-S
Activeams-OSRAM USA INC.
LED BLUE SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KB CSLNM1.14-4V7A-46-0-S
Activeams-OSRAM USA INC.
LED BLUE SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KB CSLNM1.14-4V7A-46-0-S |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 1 A |
| Height (Max) [Max] | 0.87 mm |
| Lens Size | 3 mm |
| Lens Style | Square with Flat Top |
| Mounting Type | Surface Mount |
| Package / Case | 1212 |
| Package / Case | 3030 Metric |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3 V |
| Wavelength - Dominant | 455 nm |
| Wavelength - Peak | 450 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.60 | |
| 10 | $ 3.16 | |||
| 100 | $ 2.42 | |||
| Digi-Reel® | 1 | $ 4.60 | ||
| 10 | $ 3.16 | |||
| 100 | $ 2.42 | |||
| Tape & Reel (TR) | 1000 | $ 2.04 | ||
| 2000 | $ 1.95 | |||
| 5000 | $ 1.92 | |||
Description
General part information
KB CSLNM1.14 Series
Blue 455nm LED Indication - Discrete 3V 1212 (3030 Metric)
