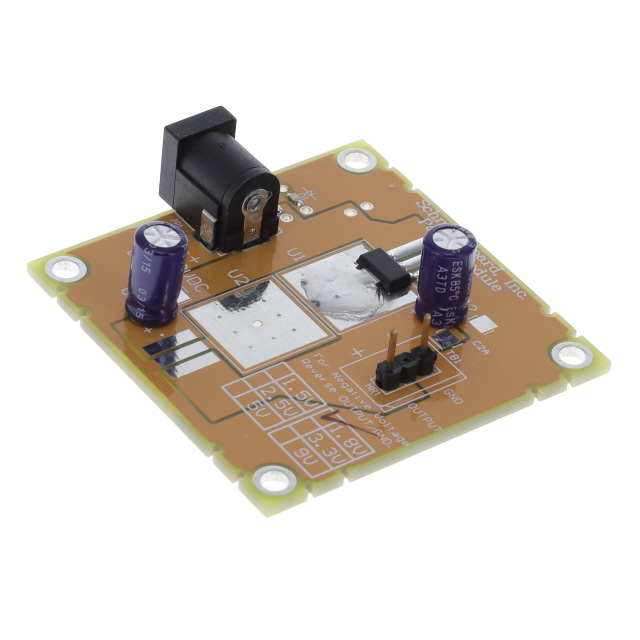

710-0003-02

Active

Schmartboard, Inc.

1.8 VOLT POPULATED SINGLE VOLTAG

Search across all available documentation for this part.

Active

Schmartboard, Inc.

1.8 VOLT POPULATED SINGLE VOLTAG

Technical Specifications

Parameters and characteristics for this part

Part	Utilized IC / Part	Channels per IC	Board Type	Supplied Contents	Voltage - Input	Voltage - Output	Regulator Type
Schmartboard, Inc. 710-0003-01	TLV1117-15	1 - Single	Fully Populated	Board(s)	12 VDC	1.5 V	Positive Fixed
Schmartboard, Inc. 710-0003-04	TLV1117-33	1 - Single	Fully Populated	Board(s)	12 VDC	3.3 V	Positive Fixed
Schmartboard, Inc. 710-0003-06	KA78R09C	1 - Single	Fully Populated	Board(s)	12 VDC	9 V	Positive Fixed
Schmartboard, Inc. 710-0003-02	TLV1117-18	1 - Single	Fully Populated	Board(s)	12 VDC	1.8 V	Positive Fixed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.00

General part information

TLV1117-18 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board
