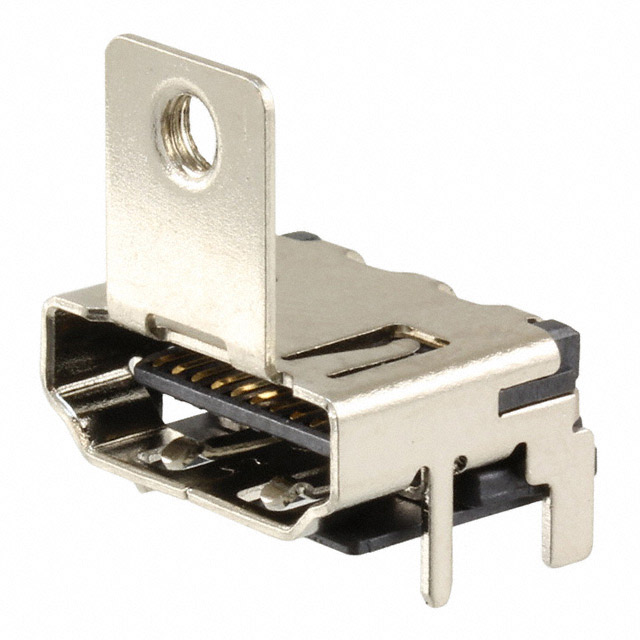

2000-1-2-23-00-BK

Active

CnC Tech, LLC

CONN RCPT HDMI 19POS SMD R/A

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN RCPT HDMI 19POS SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	2000-1-2-23-00-BK

Connector Type	HDMI
Contact Finish	Gold
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange, Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Contacts [custom]	19
Number of Ports	1
Shell/Shielding Material	Brass
Termination	Solder

Part	Number of Contacts [custom]	Connector Type	Current Rating (Amps)	Mating Cycles	Shell/Shielding Material	Number of Ports	Gender	Mounting Type	Insulation Color	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Shielding	Contact Finish	Termination	Material Flammability Rating
CnC Tech, LLC 2000-1-2-30-00-BK-TR	19	HDMI	0.5 A	10000	Copper Alloy Steel (SPCC)	1	Receptacle	Surface Mount Right Angle Through Hole	Black	Board Guide	85 °C	-20 C	Horizontal	Shielded	Gold	Solder	UL94 V-0
CnC Tech, LLC 2000-1-2-30-00-BK	19	HDMI	0.5 A	10000	Copper Alloy Steel	1	Receptacle	Surface Mount Right Angle Through Hole	Black		85 °C	-20 C	Horizontal		Gold	Solder	UL94 V-0
CnC Tech, LLC 2000-1-2-23-00-BK	19	HDMI			Brass	1	Receptacle	Surface Mount Right Angle Through Hole	Black				Flange Horizontal		Gold	Solder	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

HDMI Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
