JF1R6-CR3-4I

Active

Digi

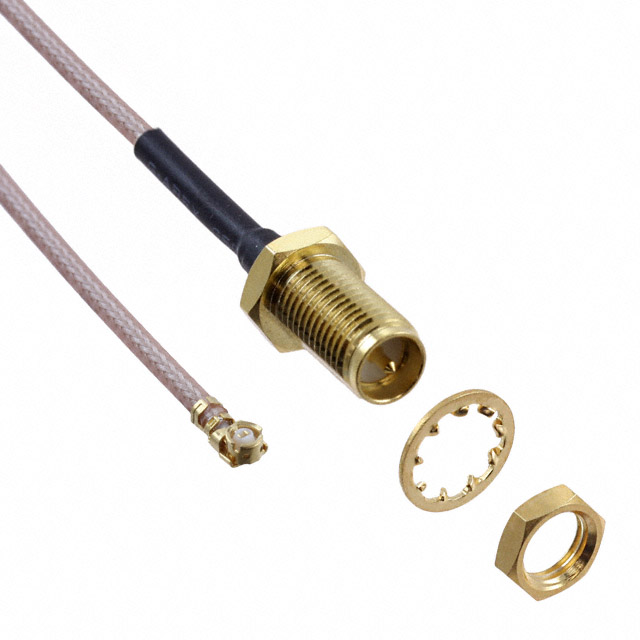

CBL ASSY U.FL-RPSMA JACK-PLUG 4"

Search across all available documentation for this part.

Active

Digi

CBL ASSY U.FL-RPSMA JACK-PLUG 4"

Technical Specifications

Parameters and characteristics for this part

Specification	JF1R6-CR3-4I

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	U.FL (UMCC) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Copper
Features	Shielded
Length	4 in
Length	101.6 mm
Overall Impedance	50 Ohms
Style	U.FL (UMCC) to RP-SMA

Part	1st Connector	1st Connector Mounting Feature	1st Connector Mounting Type	2nd Contact Gender	Style	2nd Connector Mounting Type	Color	Cable Impedance	1st Contact Gender	2nd Connector	Length	Length	Features	Cable Type	Overall Impedance
Digi JF1R6-CR3-4I	RP-SMA Jack	Bulkhead - Front Side Nut	Panel Mount	Female	U.FL (UMCC) to RP-SMA	Free Hanging (In-Line)	Copper	50 Ohms	Male	U.FL (UMCC) Plug Right Angle	4 in	101.6 mm	Shielded	RG-178	50 Ohms
Digi JF1R6-CR3-6I	RP-SMA Jack	Bulkhead - Front Side Nut	Panel Mount	Female	U.FL (UMCC) to RP-SMA	Free Hanging (In-Line)	Copper	50 Ohms	Male	U.FL (UMCC) Plug Right Angle	6 in	152.4 mm	Shielded	RG-178	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 5.10

General part information

Cable Assembly Coaxial U.FL (UMCC) to RP-SMA RG-178 4.000" (101.60mm)
