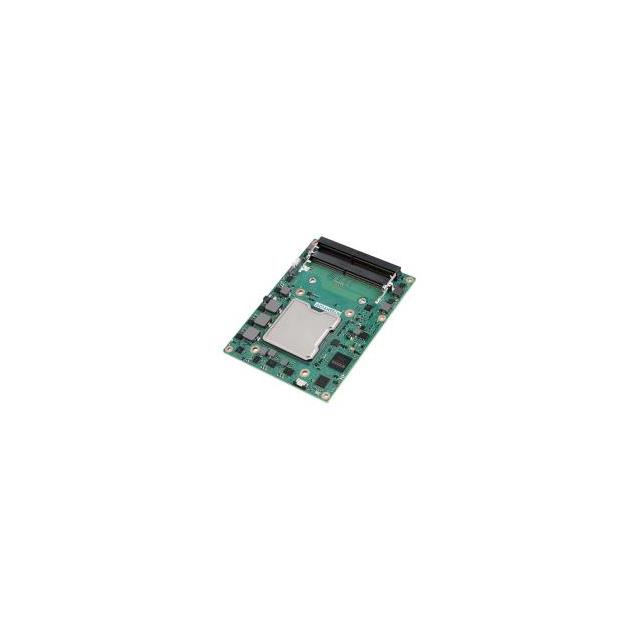

SOM-5993D8X-S9A1

Active

Advantech Corp

SBC 3.0GHZ 8 CORE 128KB RAM

Search across all available documentation for this part.

Active

Advantech Corp

SBC 3.0GHZ 8 CORE 128KB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	SOM-5993D8X-S9A1

Cooling Type	Fan
Core Processor	Intel Xeon D-1732TE
Digital I/O Lines	8
Ethernet	100 Mbps, 1000 Mbps, 10 Mbps
Ethernet	GbE
Expansion Site/Bus	I2C, PCIe, SMBus, SPI, LPC
Form Factor	COM Express R3.0 Compact Module, Type 7
Number of Cores	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
RAM Capacity/Installed	128 GB
Size / Dimension [x]	4.92 in
Size / Dimension [x]	124.96 mm
Size / Dimension [y]	94.99 mm
Size / Dimension [y]	3.74 "
Speed	3 GHz
Storage Interface	SATA 3.0 (2)
USB	USB 2.0, USB 3.0
Watchdog Timer	True

Part	Number of Cores	Core Processor	Expansion Site/Bus	Digital I/O Lines	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	RAM Capacity/Installed	Speed	Watchdog Timer	Cooling Type	Ethernet	Ethernet	Operating Temperature [Max]	Operating Temperature [Min]	Form Factor	USB	Storage Interface
Advantech Corp SOM-5993D4-U4A1	4	Intel Xeon D-1715TER	I2C LPC PCIe SMBus SPI	8	4.92 in	124.96 mm	94.99 mm	3.74 "	128 GB	3.5 GHz		Fan	10 Mbps 100 Mbps 1000 Mbps	GbE	60 °C	0 °C	COM Express R3.0 Compact Module Type 7	USB 2.0 USB 3.0	SATA 3.0 (2)
Advantech Corp SOM-5993D8X-S9A1	8	Intel Xeon D-1732TE	I2C LPC PCIe SMBus SPI	8	4.92 in	124.96 mm	94.99 mm	3.74 "	128 GB	3 GHz		Fan	10 Mbps 100 Mbps 1000 Mbps	GbE	85 °C	-40 °C	COM Express R3.0 Compact Module Type 7	USB 2.0 USB 3.0	SATA 3.0 (2)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2218.65

General part information

Single Board Computer 3GHz 8 Core 128GB RAM Intel Xeon D-1732TE
