WCC1-3-01

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE ARROWHEAD

Search across all available documentation for this part.

Active

Essentra Access Solutions

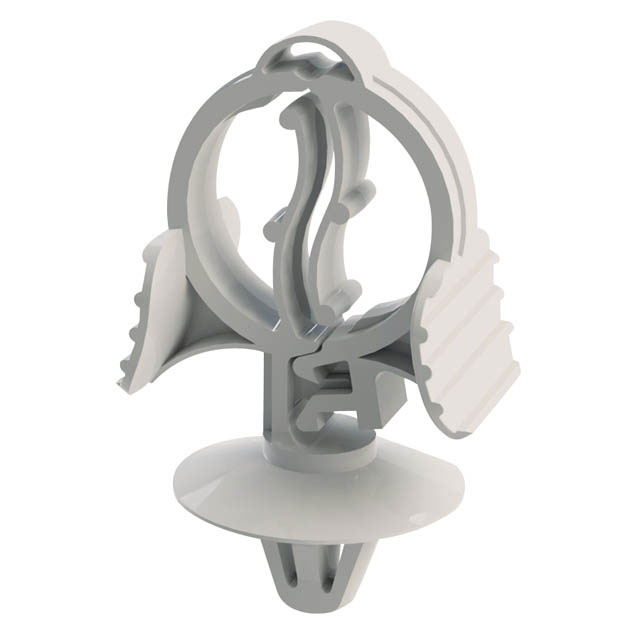

CBL CLIP WIRE SADDLE ARROWHEAD

Technical Specifications

Parameters and characteristics for this part

Specification	WCC1-3-01

Color	Natural
Height [z]	36.98 mm
Height [z]	1.456 in
Length	32.99 mm
Length	1.299 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Arrowhead, Winged
Opening Size [Max] [z]	0.5 in
Opening Size [Max] [z]	12.7 mm
Opening Size [Min] [z]	0.118 in
Opening Size [Min] [z]	3 mm
Panel Hole Size [Max]	0.189 in
Panel Hole Size [Max]	4.8 mm
Panel Hole Size [Min]	0.157 in
Panel Hole Size [Min]	4 mm
Panel Thickness [Max]	1.6 mm
Panel Thickness [Max]	0.063 in
Panel Thickness [Min]	0.48 mm
Panel Thickness [Min]	0.019 in
Type	Clip, Wire Saddle
Type Attributes	Round, Webbed
Width	15 mm
Width	0.591 in

Part	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Min]	Panel Hole Size [Max]	Mounting Type	Color	Type Attributes	Type	Height [z]	Height [z]	Material	Material Flammability Rating	Length	Length	Width	Width
Essentra Access Solutions WCC1-3-01	0.48 mm	0.019 in	1.6 mm	0.063 in	0.5 in	0.118 in	3 mm	12.7 mm	0.189 in	0.157 in	4 mm	4.8 mm	Arrowhead Winged	Natural	Round Webbed	Clip Wire Saddle	36.98 mm	1.456 in	Polyamide (PA66) Nylon 6/6	UL94 V-2	32.99 mm	1.299 in	15 mm	0.591 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.41

General part information

Cable Clip, Wire Saddle Natural Arrowhead, Winged 0.118" ~ 0.500" (3.00mm ~ 12.70mm)
