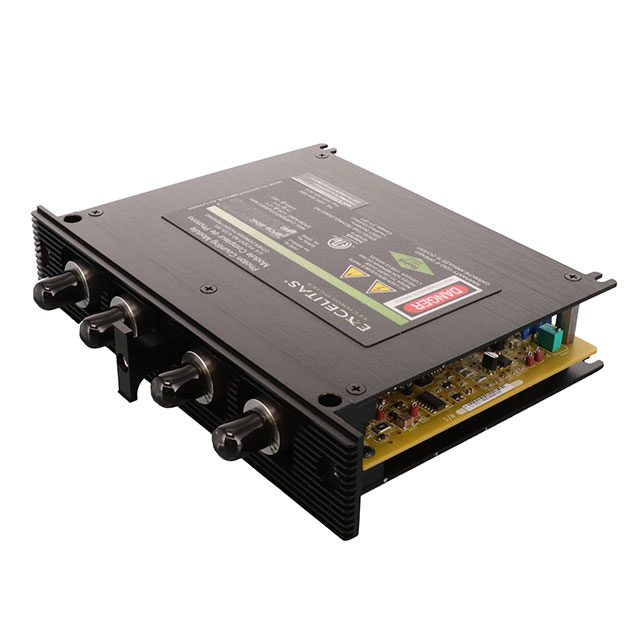

SPCM-AQ4C

Active

Excelitas Technologies

PHOTON COUNT MODULE 4 CHANNEL <5

Search across all available documentation for this part.

Active

Excelitas Technologies

PHOTON COUNT MODULE 4 CHANNEL <5

Technical Specifications

Parameters and characteristics for this part

Specification	SPCM-AQ4C

Active Area	180 μm
Dark Count Rate	500 cps
Dead Time	50 ns
Detector Type	Avalanche Photodiode
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	5 °C
Photon Detection Efficiency	60 %
Type	Single Photon Detector
Type	4 Channel
Voltage - Supply	30 VDC, 2 V, 5 V
Wavelength - Peak	650 nm
Wavelength Range [Max]	1060 nm
Wavelength Range [Min]	400 nm

Part	For Use With/Related Products	Accessory Type	Dark Count Rate	Wavelength Range [Max]	Wavelength Range [Min]	Voltage - Supply	Photon Detection Efficiency	Detector Type	Active Area	Type	Type	Dead Time	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength - Peak
Excelitas Technologies SPCM-AQ4C-IO	SPCM-AQ4C	Interface Board
Excelitas Technologies SPCM-AQ4C			500 cps	1060 nm	400 nm	2 V 5 V 30 VDC	60 %	Avalanche Photodiode	180 μm	Single Photon Detector	4 Channel	50 ns	40 °C	5 °C	650 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14695.00

General part information

PHOTON COUNT MODULE 4 CHANNEL <5
