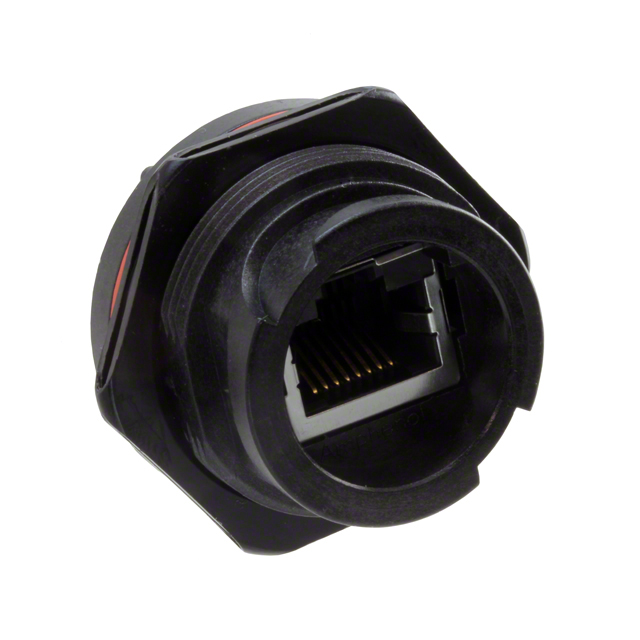

RJFRB75

Active

Amphenol Socapex

CONN MOD JACK 8P8C SHIELDED

Search across all available documentation for this part.

Active

Amphenol Socapex

CONN MOD JACK 8P8C SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	RJFRB75

Connector Type	Jack
Features	Circular Bayonet Coupling
Ingress Protection	IP68 - Dust Tight, Waterproof
LED Color	Does Not Contain LED
Mounting Type	Bulkhead, Panel Mount
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Straight
Shielding	Shielded
Tab Direction	User Selectable
Termination	Solder

Part	Number of Positions/Contacts	Color	Shielding	Style	Features	Connector Type	Length	Length	Mounting Type	Cable Type	Length [x]	Length [x]	Ingress Protection	Convert From (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Convert To (Adapter End)	Ratings	Mounting Feature	Shell Material, Finish	Type	For Use With/Related Products	Accessory Type	Orientation	Termination	LED Color	Tab Direction	Number of Rows	Number of Ports
Amphenol Socapex RJFRB7215100BTX	8p8c (RJ45 Ethernet)	Gray	Shielded	Cat6 IP67	Circular Bayonet Coupling Molded Plugs	Jack to Plug	4.92 '	1.5 m	Bulkhead Panel Mount	Round Cable
Amphenol Socapex RJFRB7205100BTX	8p8c (RJ45 Ethernet)	Gray	Shielded	Cat6 IP67	Circular Bayonet Coupling Molded Plugs	Jack to Plug			Bulkhead Panel Mount	Round Cable	1.64 ft	500 mm
Amphenol Socapex RJFRB71RA			Unshielded		Circular Reverse Bayonet Coupling Industrial Environments				Bulkhead Panel Mount Right Angle				IP67 - Dust Tight Waterproof	Jack 8p8c (RJ45)	85 °C	-40 °C	8p8c (RJ45) Jack	Cat5e	Rear Side Nut	Plastic	Coupler
Amphenol Socapex RJFRBC7					IP67 Lanyard																	RJF RB Series Receptacle	Cap (Cover) Dust
Amphenol Socapex RJFRB71			Unshielded		Circular Reverse Bayonet Coupling Industrial Environments				Bulkhead Panel Mount				IP67 - Dust Tight Waterproof	Jack 8p8c (RJ45)	85 °C	-40 °C	8p8c (RJ45) Jack	Cat5e	Rear Side Nut	Plastic	Coupler
Amphenol Socapex RJFRB75	8p8c (RJ45 Ethernet)		Shielded		Circular Bayonet Coupling	Jack			Bulkhead Panel Mount				IP68 - Dust Tight Waterproof		85 °C	-40 °C								Straight	Solder	Does Not Contain LED	User Selectable	1	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Shielded
