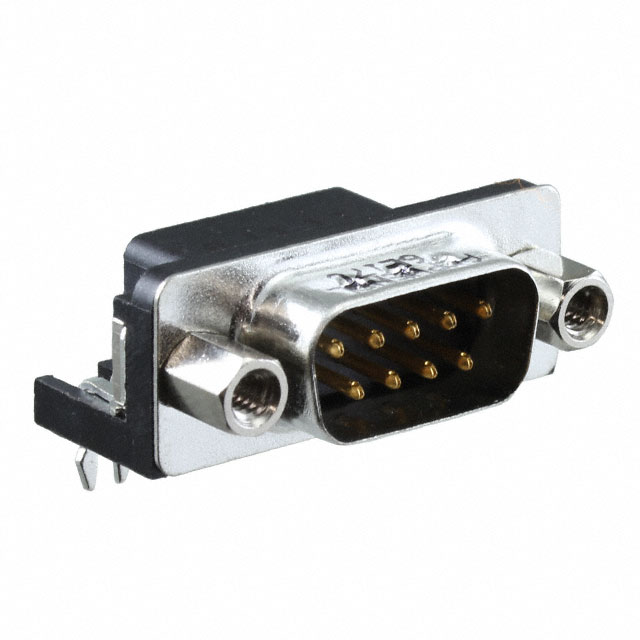

6E17C009PAJ221

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 9POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 9POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	6E17C009PAJ221

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Glass Filled, Polyamide (PA), Nylon
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material, Finish	Termination	Connector Type	Contact Material	Dielectric Material	Contact Type	Flange Feature	Contact Finish	Number of Positions	Backset Spacing	Backset Spacing	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Color	Features	Mounting Type	Connector Style
Amphenol ICC (Commercial Products) 6E17C-009P-AJ-121	105 ░C	-55 °C	Nickel Plated Steel	Solder	Male Pins Plug	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Signal	Housing/Shell (4-40)	Gold	9	8.08 mm	0.318 "	DE E	1	2	UL94 V-0	0.76 Ám	30 Áin	5 A	Black	Board Lock Grounding Indents Shielded	Through Hole Right Angle	D-Sub
Amphenol ICC (Commercial Products) 6E17C009PBF221	105 ░C	-55 °C	Nickel Plated Steel	Solder	Male Pins Plug	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Signal	Female Screwlock (4-40) Mating Side	Gold	9	8.08 mm	0.318 "	DE E	1	2	UL94 V-0	0.076 Ám	3 Áin	5 A	Black	Board Lock Grounding Indents	Through Hole Right Angle	D-Sub
Amphenol ICC (Commercial Products) 6E17C009PAJ221	105 ░C	-55 °C	Nickel Plated Steel	Solder	Male Pins Plug	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Signal	Female Screwlock (4-40) Mating Side	Gold	9	8.08 mm	0.318 "	DE E	1	2	UL94 V-0	0.76 Ám	30 Áin	5 A	Black	Board Lock Grounding Indents Shielded	Through Hole Right Angle	D-Sub

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Plug, Male Pins Connector
