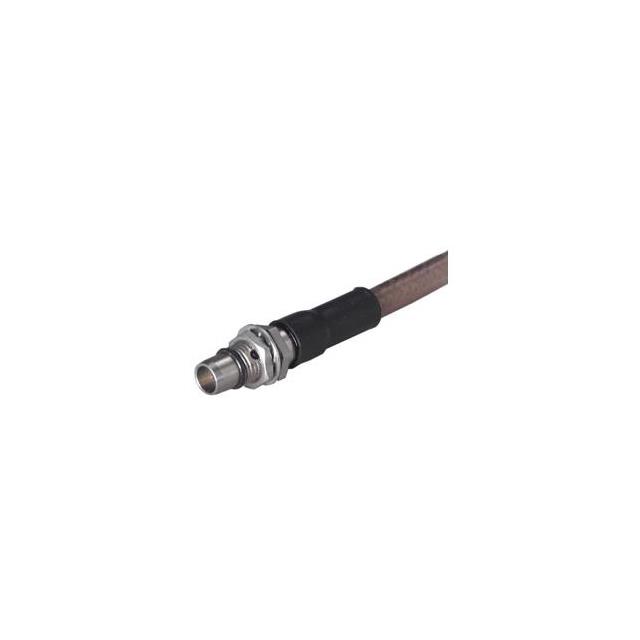

14_BMA-50-3-3/199_NE

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

14_BMA-50-3-3/199_NE

Technical Specifications

Parameters and characteristics for this part

Specification	14_BMA-50-3-3/199_NE

Body Material	Stainless Steel
Cable Group	223, RG-142
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	BMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	1000
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Body Finish	Connector Style	Frequency - Max [Max]	Body Material	Shield Termination	Impedance	Mating Cycles	Center Contact Plating	Connector Type	Number of Ports	Center Contact Material	Fastening Type	Housing Color	Dielectric Material	Cable Group
Huber+Suhner, Inc. 14_BMA-50-2-33/133_NH	Bulkhead - Front Side Nut	125 °C	-40 °C	Crimp	White Bronze	BMA	12.4 GHz	Brass	Solder	50 Ohms	1000	Gold	Male Pin Plug	1	Beryllium Copper	Snap-On	Silver	Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 14_BMA-50-3-3/199_NE	Bulkhead - Front Side Nut	125 °C	-65 ░C	Solder		BMA	18 GHz	Stainless Steel	Crimp	50 Ohms	1000	Gold	Male Pin Plug	1	Beryllium Copper Brass	Snap-On	Silver	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	223 RG-142

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 77.94

General part information

BMA Connector Plug, Male Pin 50 Ohms Panel Mount Solder
