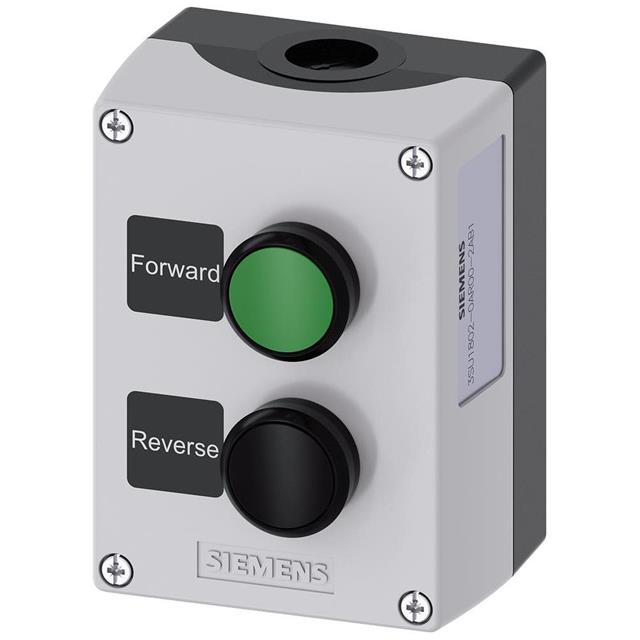

3SU18020AR002AB1

Active

Siemens

ENCLOSURE PLASTIC. 2 CONTROL POI

Search across all available documentation for this part.

Active

Siemens

ENCLOSURE PLASTIC. 2 CONTROL POI

Technical Specifications

Parameters and characteristics for this part

Specification	3SU18020AR002AB1

Actuator Type	Round, Button
Circuit	DPST-NO
Current Rating (Amps)	10 A
Ingress Protection	IP69K, IP67, IP66
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Circuit	Mounting Type	Termination Style	Type	Voltage Rating - DC	Ingress Protection	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Actuator Type	For Use With/Related Products	Accessory Type
Siemens 3SU18020AP002AB1	70 °C	-25 °C	10 A	DPST-NO	Panel Mount Front	Screw Terminal	Standard	500 V	IP66 IP67 IP69K	22.3 mm	500 V	Button Round
Siemens 3SU18020AN002AB1													3SU1 Series	Enclosure
Siemens 3SU18020AK001AB1	70 °C	-25 °C	10 A	DPST-NO/NC	Panel Mount Front	Screw Terminal	Standard	500 V	IP66 IP67 IP69K	22.3 mm	500 V	Button Round
Siemens 3SU18020NB002AB2													3SU1 Series	Enclosure
Siemens 3SU18020AM002AB1	70 °C	-25 °C	10 A	DPST-NO/NC	Panel Mount Front	Screw Terminal	Standard	500 V	IP66 IP67 IP69K	22.3 mm	500 V	Button Round
Siemens 3SU18020AA000AB2													3SU1 Series	Enclosure
Siemens 3SU18020AA000UB1
Siemens 3SU18020AL002AB1	70 °C	-25 °C	10 A	DPST-NO/NC	Panel Mount Front	Screw Terminal	Standard	500 V	IP66 IP67 IP69K	22.3 mm	500 V	Button Round
Siemens 3SU18020AC104HB1													3SU1 Series	Enclosure
Siemens 3SU18020AR002AB1	70 °C	-25 °C	10 A	DPST-NO	Panel Mount Front	Screw Terminal	Standard	500 V	IP66 IP67 IP69K	22.3 mm	500 V	Button Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 246.86

General part information

Pushbutton Switch DPST-NO Standard Panel Mount, Front
